Anchor Chain Accessory
Anchor Chain Accessory

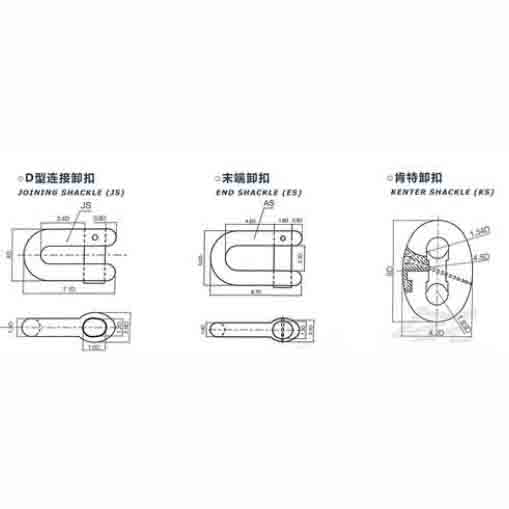

Joining Shackle (JS)
End Shackle (ES)
Kenter Shackle (KS)
Common Link (C)
Studless Link (L)
Swivel (SW)
End Link (E)
Enlarge Link (EL)
Pearlink Shackle
| Type | Chain Dia (mm) | A | B | C | D | E | H | K | L | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 26-30 | 238 | 167 | 46 | 30 | 38 | 65 | 32 | 46 | 9 |
| 4 | 32-40 | 298 | 206 | 59 | 40 | 48 | 79 | 39×44 | 57 | 13 |
| 5 | 42-50 | 381 | 251 | 76 | 51 | 64 | 100 | 52.44 | 76 | 28 |
| 6 | 52-60 | 454 | 313 | 92 | 60 | 76 | 121 | 62×73 | 89 | 49 |
| 7 | 78-92 | 651 | 406 | 140 | 92 | 124 | 152 | 111×122 | 130 | 156 |
Note: The description may be different with the product, please contact us for quotation.
