AIR PIPE HEAD
PRODUCT BASIC INFORMATION
- TYPE: HJQE(FS)
- Size Range: DN500-700
- STRUCTURE: CASTING BODY + S.S FLOAT BALL
- APPLICATION: The air pipe head is used for all kinds of marine pipe systems for ventilation.
PART LIST
| ITEM | PART NAME | MATERIAL |
|---|---|---|
| 1 | BODY | STEEL Q235-B |
| 2 | BOLT | SUS304 |
| 3 | FLOAT BALL | PE |
| 4 | SCREEN | SUS304 |
| 5 | SIDE COVER | STEEL Q235-B |
| 6 | SEAL | Neoprene |
| 7 | SCREW PLUG | PE |

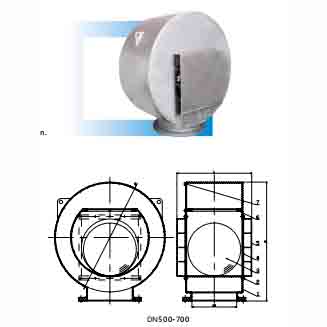

DIMENSION TYPE TABLE
| Size | B | L | H |
|---|---|---|---|
| DN500 | 1310 | 896 | 1460 |
| DN550 | 1363 | 920 | 1463 |
| DN600 | 1494 | 958 | 1594 |
| DN650 | 1700 | 1120 | 1850 |
| DN700 | 1794 | 1142 | 1944 |
TECHNICAL REQUIREMENTS
- Body and Side Cover shall be hot dip galvanized, and the inner surface of air pipe heads shall be additionally coated with epoxy paint.
- 30 mesh for oil tank, 10 mesh for water tank or according to the end user’s requirement.
- Flange standard according to the end user’s requirement.
Note: The description may be different with the product, please contact us for quotation.
