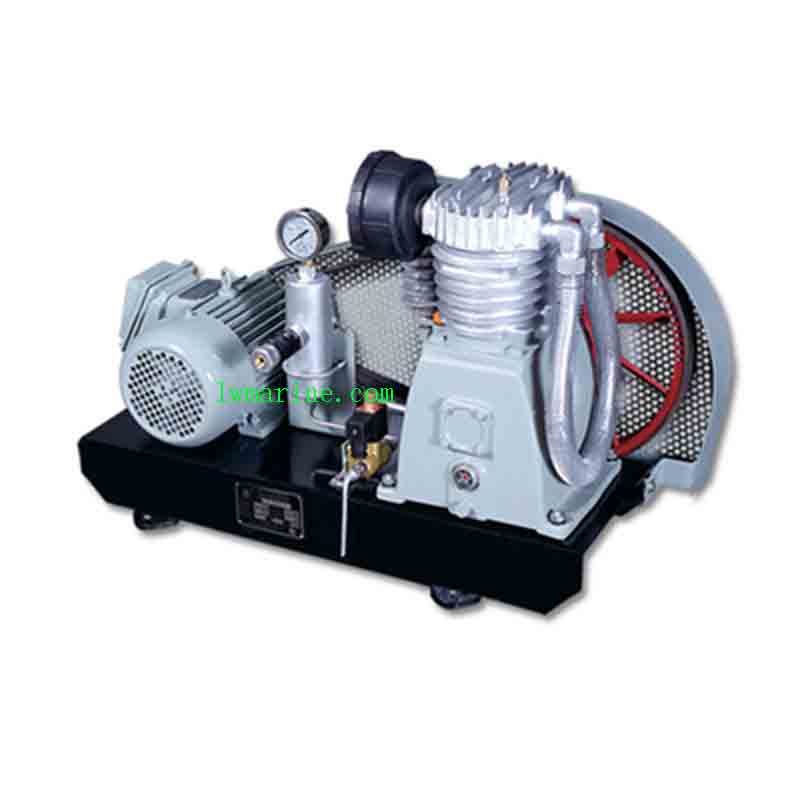

CZF-33 Air-Cooled Marine Air Compressor
The CZF-33 air-cooled marine air compressor stands as a premier high-performance, industrial-grade compressor, meticulously engineered to meet the rigorous demands of marine, shipbuilding, and offshore environments. Leveraging advanced air-cooling technology, this heavy-duty air compressor efficiently dissipates heat, ensuring optimal performance and reliability even under high-temperature conditions commonly encountered in maritime operations.
Key Features & Benefits for Enhanced Industrial Efficiency
✔ Automatic Pressure Switch: Protects your equipment by automatically shutting down the compressor if the pressure exceeds preset limits, preventing potential damage and ensuring safe operation.
✔ Oil Separator & Air Filter System: Delivers clean, contaminant-free compressed air, making it ideal for sensitive industrial applications where air quality is paramount.
✔ Robust Construction: Built with high-grade cast iron and stainless steel, this compressor offers superior durability and resistance to corrosive environments, ensuring longevity and reliability.
✔ Intercooler & Aftercooler: Effectively reduces heat buildup during operation, extending the compressor’s lifespan and improving energy efficiency, leading to cost savings over time.
✔ Low Maintenance & High Efficiency: Designed for long-term reliability with minimal servicing requirements, reducing downtime and operational costs.
Technical Specifications for Precision Engineering
- Model: CZF-33
- Displacement: 14.5 m³/h
- Pressure: 3.0 MPa
- Speed: 1200 r/min
- Weight: 160 kg
- Dimensions (L×W×H): 970×480×750 mm
Additional Models for Diverse Applications
- CWF-15/1: Displacement 18.5 m³/h, Speed 1500 r/min, Weight 180 kg (Dimensions not specified)
- CZ-0.43/150: Displacement 22 m³/h, Speed 1800 r/min, Weight 180 kg (Dimensions not specified)
CZF Marine Low Pressure Air Compressor Series
For specialized applications requiring lower pressure, our CZF Marine Low Pressure Air Compressor series offers:
- Rating Pressure: 1.0 Mpa
- Displacement Capacity: 10-20 m³/h
- Rotating Speed: 550-1100 rpm
- Power Source: Electric Motor
- Warranty: One-year comprehensive coverage
Main Technical Parameters for CZF Marine Low Pressure Series
| Model | Type | Displacement Capacity (m³/h) | Specified Pressure (Mpa) | Rotating Speed (r/min) | Motor Power (KW) | Overall Size (LWH mm) |
|---|---|---|---|---|---|---|
| CZF-10/10 | Z type air-cooled piston | 10 | 1.0 | 550 | 1.5 | 800390630 |
| CZF-15/10 | 15 | 880 | 2.2 | |||
| CZF-20/10 | 20 | 1100 | 3.0 |
Suitable for Service Air Bottles and Various Marine Applications
