A60 CLASS FIREPROOF OPEN TYPE RECTANGULAR WINDOW

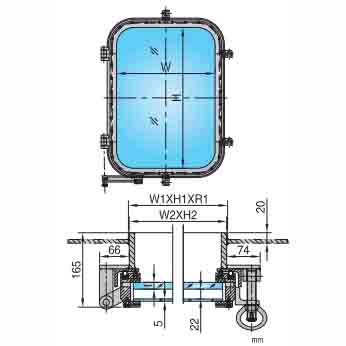

Diagram
[Diagram of the window with dimensions labeled as in the original image]
Dimensions Table
| Nominal Size (WXH) | Size of B.H. Opening (W1XH1XR1) | Size of Outline (W2XH2) | Glass Thickness |
|---|---|---|---|
| 300X425 | 352X477XR76 | 348X473 | 15 (Heavy/Medium) |
| 355X500 | 407X552XR76 | 403X548 | 15 (Heavy/Medium) |
| 400X560 | 452X612XR76 | 448X608 | 15 (Heavy/Medium) |
| 450X630 | 502X682XR126 | 498X678 | 15 (Heavy/Medium) |
| 500X710 | 552X762XR126 | 548X758 | 15 (Heavy/Medium) |
| 560X800 | 612X852XR126 | 608X848 | 15 (Heavy/Medium) |
Notes
- The light-transmitting size is for a 560X800mm A60 class fireproof open-type rectangular window (left-inside).
- A60 class fireproof open-type rectangular window 560X800-LI 261JY067-00.
Attention please: The description may be different with the goods, please check with us when order.
