ALUMINIUM DOUBLE SLIDING WINDOW
This product has good water – tightness and is suitable for yachts, tourist ships, etc.
THIS PRODUCT IS WATER – TIGHT AND HAS GOOD TIGHTNESS USED FOR YACHT AND TOURISTRY SHIP.

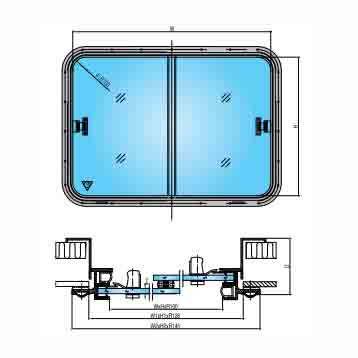

[Three diagrams:
- Front – view of the aluminium double – sliding window, showing a rectangular window with two sliding panes, labeled with overall dimensions W and H, and the light – transmitting area dimensions.
- Side – view diagram showing the cross – section of the window frame and the sliding mechanism, with detailed dimensions labeled such as the frame thickness, glass thickness, etc.
- A detailed cross – sectional view focusing on the connection part of the window frame and the glass, with more precise dimension labels.]
Table of Specifications
| Nominal Size W×H | Clear Light Size W×H | Wall Cut Size W1×H1 | Outer Size W2×H2 | Glass Thickness (mm) | Weight (KG) |
|---|---|---|---|---|---|
| 500*300 | 500*300 | 552*352 | 590*390 | 6 | 7.6 |
| 700*400 | 700*400 | 752*452 | 790*490 | 6 | 9.8 |
| 800*500 | 800*500 | 852*552 | 890*590 | 6 | 12.5 |
| 900*600 | 900*600 | 952*652 | 990*690 | 8 | 17 |
| 1000*700 | 1000*700 | 1052*752 | 1090*790 | 8 | 22.5 |
Example for Light – transmitting Size:
For an aluminium double – sliding window with a light – transmitting size of 700400mm: Aluminium Double – sliding Window 700400 JY058 – 00.
Attention please: The description might be incorrect, please contact us for confirmation.
