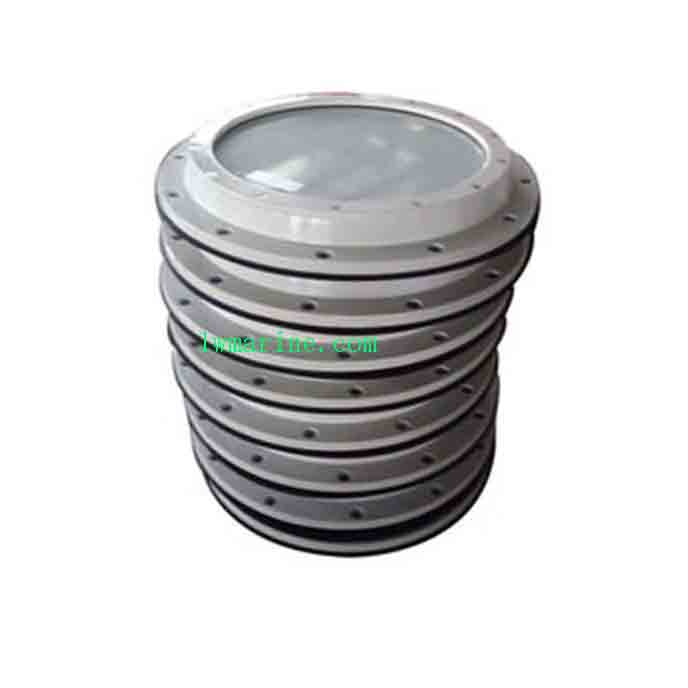

Marine-Grade Aluminum Side Scuttles
Our high-performance aluminum side scuttles (marine portholes) are engineered for sea-going vessels, inland ships, and offshore applications. Available in openable or fixed configurations, these lightweight yet durable scuttles provide excellent watertight and weatherproof performance while meeting marine safety standards.
Key Features & Benefits
✔ Multiple Type Options:
-
Heavy Type: For watertight & gastight requirements below freeboard
-
Medium Type: Ideal for cargo vessels above freeboard
-
Light Type: Perfect for passenger vessels above freeboard
✔ Customizable Configurations:
-
With/Without Storm Cover (extra weather protection)
-
Bolted or Welded Installation (flexible mounting)
-
Optional Fireproofing (A-class fire rating available)
✔ Superior Marine Construction:
-
Corrosion-resistant aluminum alloy
-
Tempered safety glass options
-
Precision-engineered for perfect sealing
Technical Specifications
Standard Dimensions (Heavy & Medium Types)
| Clear Size (D) | D1 | D3 | D4 | D5 | h | gmax | Bolt Size | Qty | Cutout in Steel Wall |
|---|---|---|---|---|---|---|---|---|---|
| Φ200 | Φ245 | Φ250 | Φ350 | Φ310 | 155 | 50 | M16 (12) | 8 | 253 |
| Φ250 | Φ295 | Φ305 | Φ400 | Φ364 | 182 | 47.5 | M16 | 8 | 308 |
| Φ300 | Φ350 | Φ360 | Φ450 | Φ414 | 207 | 45 | M16 | 12 | 363 |
| Φ350 | Φ400 | Φ410 | Φ500 | Φ464 | 232 | 45 | M18 | 12 | 413 |
| Φ400 | Φ450 | Φ460 | Φ550 | Φ514 | 257 | 45 | M18 | 12 | 463 |
| Φ450 | Φ500 | Φ510 | Φ600 | Φ564 | 282 | 45 | M20 | 12 | 513 |
Note: The description might be incorrect, please contact us for confirmation.
