SIDE SCUTTLE FOR SHIP

A – type – NB

Diameter (D): 300, 350, 400
Grade A – NB type, with additional diameters of 200, 250

[Two circular – shaped technical diagrams of the side scuttle. The first is a front – view diagram showing the outer appearance with dimensions labeled such as D (diameter), and angles. The second is a cross – sectional diagram showing internal structural details with dimensions like 16, 8, 20, etc.]

Table for A – NB type

Type	Light Size D	D1	D2	D3	D4	D5	h	t	α	Qty. of Clips	Deadlight (Glass – holder)	Whorl Out	Installation Bolt
NB	200	204	250	305	310	155	10	10°	2	2	M16	8	253
	250	254	305	360	364	182	12	12°	2	2	M16	8	308
	300	304	360	450	414	207	15	31°	3	3	M16	12	363
	350	354	410	500	464	232	15	31°	3	3	M16	12	413
	400	404	460	550	514	257	19	31°	3	3	M18	12	463

A – type – LW(RW) type

Diameter (D): 300, 350, 400
Grade A – LW(RW) type, with additional diameters of 200, 250

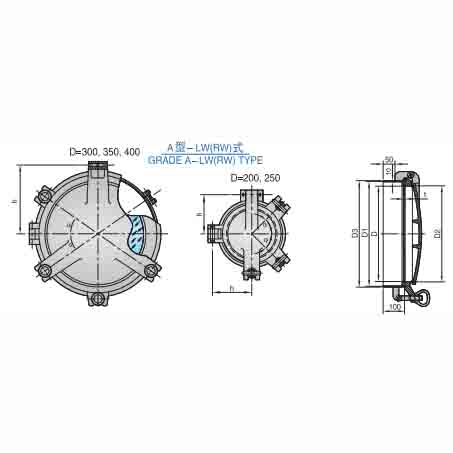

[Similar to the above, two circular – shaped technical diagrams for the LW(RW) type side scuttle, with front – view and cross – sectional views labeled with relevant dimensions.]

Table for A – LW(RW) type

Type	Light Size D	D1	D2	D3	h	t	α	gmax	Qty. of Clips	Deadlight (Glass – holder)	Whorl Out	Installation Bolt	Wall Opening Size
LW RW	200	245	204	250	155	10	45°	47.5	2	3	M16	8	253
	250	295	254	305	182	12	48°		2	3	M16	8	308
	300	350	304	360	207	15	31°		3	3	M16	12	363
	350	400	354	410	232	15	31°		3	3	M16	12	413
	400	450	404	460	257	19	31°		3	3	M18	12	463
