A0 CLASS FIREPROOF OPEN TYPE RECTANGULAR WINDOW

A0 CLASS FIREPROOF OPEN TYPE RECTANGULAR WINDOW

The glass can also be heating glass if needed.

THE GLASS COULD ALSO BE HEATING GLASS IF NEED.

[Four diagrams:

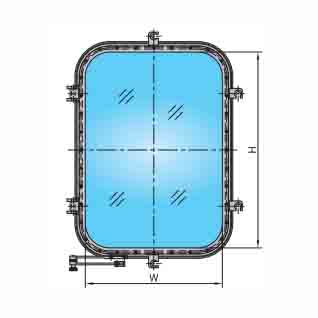

1. Front – view of the A0 – class fireproof open – type rectangular window, showing a rectangular window with a frame and handles on the left and right sides, labeled with overall dimensions W and H, and other detailed dimensions such as the size of the glass opening and the positions of the handles.
2. Top – view diagram showing the cross – section of the window frame and the glass, with dimensions labeled for the frame thickness and the glass thickness.
3. Side – view diagram showing the window in a closed state, including the structure of the frame, the glass, and the locking mechanism, with multiple dimensions labeled such as W1×H1×R1, W2×H2, W3×H3×R3.
4. A detailed view of the handle and locking part, showing how the window is opened and locked, with relevant dimension labels.]

Table of Specifications

Marking Example:
For an A0 – class fireproof open – type rectangular window with a nominal size of 560×800mm (left – inner type): A0 Class Fireproof Open Type Rectangular Window 560×800 – LI JY064 – 00.

Attention please: The description may be different with the goods, please check with us when order.
