FIRE RESISTANCE SERVICE WINDOW
This product is applicable to kitchens, pantries, storage rooms, small shops, etc., on ships.
USED FOR GALLEY, PANTRY, STORE AND SHOP, ECT. OF SHIP.

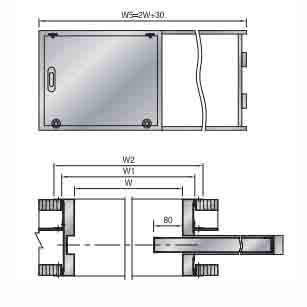

[Four diagrams:
- Front – view of the fire – resistant service window, showing a rectangular window with a handle on the left side, labeled with dimensions W (light size width), H (light size height), W1 (outer frame width), W2 (inner frame width related to opening), and 80 (a fixed dimension at the bottom).
- Side – view diagram showing the cross – section of the window, including the structure of the frame, glass, and the sliding mechanism, with dimensions labeled such as T1, T2, T3, H1, H2.
- A detailed view of the sliding track part, showing the track structure and relevant dimensions.
- Another detailed view focusing on the connection part of the frame and the glass, with dimension labels.]
Table of Specifications
| Type | Light Size W×H (mm) | Wall Opening Size W1×H1 (mm) | Window Frame Size W2×H2 (mm) | Sliding Track Length WS (mm) | Window Frame Depth D (mm) | Weight (KG) – Stainless Steel | Weight (KG) – Aluminium Alloy |
|---|---|---|---|---|---|---|---|
| A | 630X500 | 696X566 | 750X620 | 1290 | 180 | 31.8 | 16.2 |
| 900X630 | 966X696 | 1050X750 | 1830 | 45.6 | 23.4 | ||
| 1100X800 | 1167X867 | 1220X920 | 2230 | 220 | 62.6 | 31.7 | |
| 1400X1000 | 1467X1067 | 1520X1120 | 2830 | 86.8 | 41.4 | ||
| 1800X1100 | 1868X1168 | 1920X1220 | 3630 | 260 | 115.2 | 59.2 | |
| 2300X1200 | 2368X1268 | 2420X1320 | 4630 | 148.8 | 76.5 |
Marking Example:
For a fire – resistant service window with a light size of 630X500mm and type A: Fire Resistance Service Window A630X500 CB*3288 – 1987.
Attention please: The description might be incorrect, please contact us for confirmation.
