32A Marine Large Current Watertight Brass Plug
Product Images and Technical Diagrams

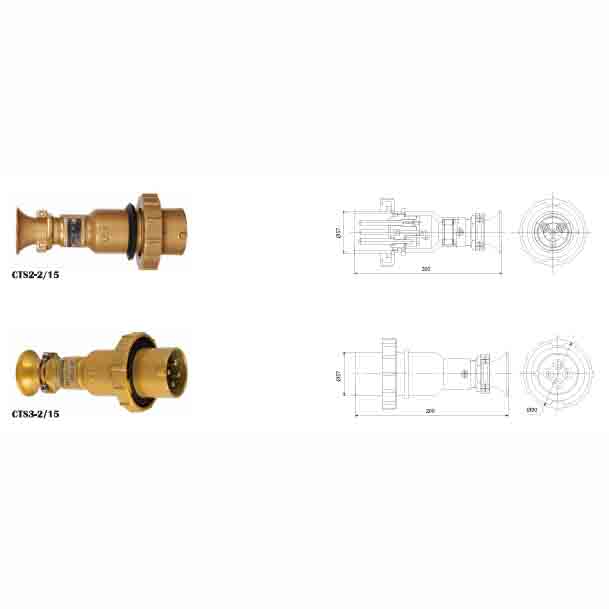

[The image displays two types of 32A marine large – current watertight brass plugs: CTS2 – 2/15 and CTS3 – 2/15. For each type, there is a front – view photo and a detailed technical diagram showing cross – sectional views with internal structure and dimensional details. The diagrams include measurements for various parts of the plugs.]
Applicable Scope
Suitable for ships and other places with high requirements for protection level, used for connecting and disconnecting AC/DC low – voltage electrical circuits.
Technical Specifications Table
| Item | CTS2 – 2/15 | CTS3 – 2/15 |
|---|---|---|
| Part Number | CTS2 – 2/15 | CTS3 – 2/15 |
| Weight | 1.6kg | 1.6kg |
| Rated Voltage | AC250V | AC380/440V |
| Rated Current | 32A | 32A |
| Protection Class | IP56 | IP56 |
| Cable Outside Diameter | Ø9 – Ø16 | Ø9 – Ø16 |
| Material | Copper Brass | Copper Brass |
| Standard | IEC 60309; CB3895 – 2011 | IEC 60309; CB3895 – 2011 |
Attention please: The description may be different with the product, please contact us for quotation.
