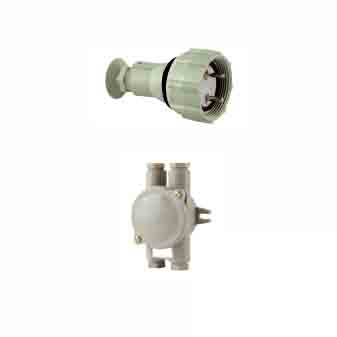

16A MARINE NYLON PLUG JUNCTION BOX
Main Parameters
| Item | Content |
|---|---|
| The scope of application | Used for connecting cutting on or off the appliance circuit with AC or DC low-voltage |
| Protection Class | IP56 |
| Cable outside diameter | φ14~φ16 |
| Material | Nylon |
| Plug pin diagram | Voltage | 24V | 125V | 250V | 500V | 500V |
|---|---|---|---|---|---|---|
| 1 Pole (1NO) | Code | 1142/F/5 | ||||
| Type | CTS101-1 | CTS101-2 | CTS101-3 | CTS101-4 | CTS101-5 | |
| Weight | 0.3kg | 0.3kg | 0.3kg | 0.3kg | 0.3kg |
Main Parameters (Junction Box)
| Item | Content |
|---|---|
| The scope of application | Used for connecting cutting on or off the appliance circuit with AC or DC low-voltage |
| Protection Class | IP56 |
| Cable outside diameter | φ14~φ16 |
| Material | Nylon |
| Plug pin diagram | Voltage | 250V |
|---|---|---|
| 1 Pole (1NO) | Code | 1151/F/5 |
| Type | JXS201 | |
| Weight | 0.20kg | |
| 1 Pole (1NO) | Code | 1150/F/5 |
| Type | JXS202 | |
| Weight | 0.20kg | |
| 2 Pole (2NO) | Code | 1152/F/5 |
| Type | JXS301 | |
| Weight | 0.21kg | |
| 2 Pole (2NO) | Code | 1156/F/5 |
| Type | JXS302 | |
| Weight | 0.21kg | |
| 3 Pole (3NO) | Code | 1153/F/5 |
| Type | JXS401 | |
| Weight | 0.22kg | |
| 4 Pole (4NO) | Code | 1155/F/5 |
| Type | JXS402 | |
| Weight | 0.22kg |
Attention please: The description may be different with the product, please contact us for quotation.
