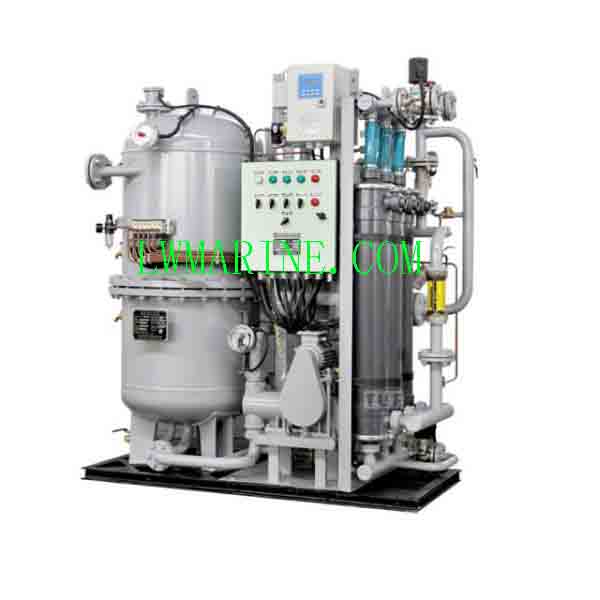

15ppm Marine Oil Water Separator for Ships and Offshore Platforms
Achieve unparalleled environmental compliance on your maritime vessels and offshore platforms with our cutting-edge 15ppm Oil Water Separator. This advanced system is meticulously engineered to rigorously treat bilge water onboard ships and offshore installations, ensuring that oil-in-water effluent levels remain consistently below 15ppm. Adhering strictly to IMO MEPC.107(49) and MARPOL Annex I regulations, our separator provides a fully automated solution that guarantees minimal environmental impact. By integrating gravity separation, coalescing filtration, and state-of-the-art ultrafiltration membrane technology, it offers reliable and continuous operation with minimal maintenance requirements, making it the ideal choice for modern vessels committed to sustainability and regulatory compliance.
Key Features & Advantages
- IMO MEPC.107(49) & MARPOL Compliance Certification: Our 15ppm Oil Water Separator is certified to ensure that the water discharged from your vessel contains no more than 15ppm of oil, providing peace of mind and helping you avoid potential fines and penalties for non-compliance with maritime pollution regulations.
- Three-Stage Advanced Treatment Process: Utilizing a combination of gravity separation, coalescing, and ultrafiltration techniques, this multi-stage approach ensures maximum oil removal efficiency, effectively separating even the smallest oil particles from the water, enhancing the quality of treated water.
- Fully Automated Operation for Hassle-Free Use: The system features automatic oil discharge, backflush cycles, and diverter valves for water that does not meet specified standards, reducing the need for manual intervention and saving time and labor costs.
- Ultrafiltration Membrane Technology for High-Purity Effluent: This technology enables the separator to achieve high-purity water output while maintaining an impressive 80% water recovery rate, reducing water wastage and ensuring the treated water is of the highest quality.
- Global Marine Approvals from Leading Authorities: Certified by multiple well-known marine classification societies, including CCS, BV, DNV, ABS, LR, GL, KR, RINA, and EC, this separator can be used on vessels operating in different regions worldwide, ensuring global compliance.
- Low Maintenance Design for Reduced Downtime: Equipped with a self-cleaning function and easily replaceable filter elements, the separator minimizes maintenance time and keeps the system running smoothly, reducing operational disruptions and enhancing efficiency.
How It Works – Intelligent Three-Stage Separation Process
First Stage: Gravity & Coalescing Separation
The bilge water first passes through a seawater pre-filter to remove large debris. It then enters the first separator, where hydrophilic cone wave plates promote the coalescence of oil particles. Free oil rises to the top chamber, and a pneumatic valve system automates the oil discharge process and performs fresh water backflushing, maintaining peak efficiency.
Second Stage: Depth Filtration
Pre-treated water from the first stage enters a secondary filter for additional polishing, removing any residual oil particles. After this stage, the water is either ready for final discharge or can undergo further treatment if necessary, ensuring compliance with maritime environmental standards.
Third Stage: Ultrafiltration Membrane
If the integrated 15ppm oil content monitor detects high oil levels, the water is directed to the ultrafiltration membrane. Using permeation technology, this stage effectively removes emulsified oils, maintaining an 80% water recovery rate. Concentrated waste is returned to the bilge for reprocessing, while treated water meets discharge standards.
The entire three-stage separation process is fully automated, including membrane preservation and startup sequences, ensuring longevity and optimal performance from installation.

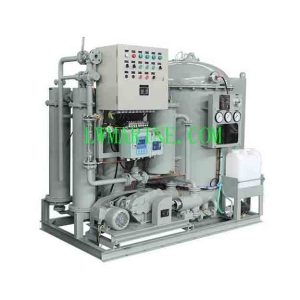

YSZ-3.0 Bilge Water Separator: High-Capacity Solution for Maritime Vessels
Our YSZ-3.0 Bilge Water Separator, with a treatment capacity of 3.0 m³ per hour, is specifically designed for large and medium-sized marine vessels. Last year, we successfully exported this model to the United States, Australia, the United Arab Emirates (UAE), and Southeast Asia, receiving positive feedback from overseas shipyards.
Description
The YSZ series 15ppm bilge water separator is designed and manufactured according to pollution protection equipment manuals and IMO MEPC.107(49) resolution technical specifications for bilge water treatment on vessel machine locations. It is suitable for treating bilge water from various types of vessels, ensuring compliance with maritime environmental regulations.
Theory
The YSZ series separator is a gravity-type oil filtering device composed of a separator, special pump, electric control chamber, and 15ppm bilge water alarm device, including filter assembly and other pipelines, valves, and accessories. It adopts a three-grade oil-filtering mode, utilizing specific weight differences to separate floating oil from bilge water. The second-grade oil filtering chamber condensates and roughens tiny oil grains, enabling them to separate and float on the water surface. Treated water meeting discharge standards is drained directly outside the board, while separated dirty oil accumulates on top of the oil filtering chamber and is discharged into a dirty oil tank when a certain amount is reached.
Technical Data
- Model Number: YSZ-3.0
- Treatment Capability: 3 m³ per hour
- Discharging Standard: Equal to or less than 15ppm, satisfying IMO MEPC.107(49)
- Working Pressure: Equal to or less than 0.3 Mpa
- Plunger Pump: Model DZ-2000, Discharging Pressure 0.3 Mpa, Suction Lift 6m
- Motor Power: 1.1 kw
- Electric Heating Power: 3 kw
- Power Supply: 3 Phase 380V 50HZ, 3 Phase 440V 60HZ
- Control Mode: Automatic
- Oil Drainage Mode: Automatic or manual
- Weight: 1120 kg
FAQs
- What is the maximum oil content that the YSZ-3.0 Bilge Water Separator can handle?
- The YSZ-3.0 Bilge Water Separator is designed to handle bilge water with an oil content up to the specified limits, ensuring that the effluent water contains no more than 15ppm of oil, in compliance with IMO MEPC.107(49) and MARPOL Annex I regulations.
- How often does the separator require maintenance?
- The separator is designed with a low maintenance requirement, featuring a self-cleaning function and easily replaceable filter elements. Regular maintenance intervals depend on usage, but the system is engineered to minimize downtime and operational disruptions.
- Can the separator be used on different types of vessels?
- Yes, the YSZ series 15ppm Bilge Water Separator is suitable for treating bilge water from various types of vessels, including large and medium-sized marine ships, ensuring compliance with maritime environmental standards across different vessel types.
- What certifications does the separator have?
- The separator is certified by multiple well-known marine classification societies, including CCS, BV, DNV, ABS, LR, GL, KR, RINA, and EC, ensuring global compliance and recognition for use on vessels operating in different regions worldwide.
- How does the ultrafiltration membrane technology enhance the separator’s performance?
- The ultrafiltration membrane technology enables the separator to achieve high-purity water output while maintaining an impressive 80% water recovery rate. This technology effectively removes emulsified oils, ensuring that the treated water meets the required standards for discharge and reducing water wastage.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
