10A Marine Nylon Switch

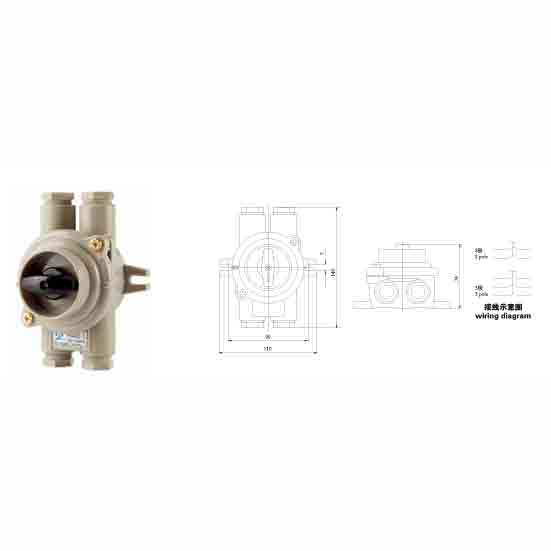

Product Image and Dimensional Diagram
[The image shows a 10A marine nylon switch from multiple angles: a front – view, a side – view, and a back – view. There is also a detailed dimensional diagram providing measurements of the switch’s length, width, height, and other relevant dimensions, along with a wiring – diagram section showing the connection configuration.]
Applicable Scope
Suitable for ships and other places with high requirements for protection level, used for connecting and disconnecting AC/DC low – voltage electrical circuits.
Technical Specifications
| Item | Detail |
|---|---|
| Protection Class | IP56 |
| Cable Outside Diameter | φ9 – φ12 |
| Material | Nylon |
| Standard | DIN89270, CB3411 – 1992 |
Gland Illustration and Technical Details Table
The wiring – diagram shows different terminal connection forms such as O-, -O-, O=, -O=, =O=. The following table lists the corresponding details for each form:
| Terminal Configuration | Voltage | Code | Type | Weight |
|---|---|---|---|---|
| O- | 24V | 1133/FS | HS101 – 1 | 0.23kg |
| 110V | 1133/FS | HS101 – 2 | 0.23kg | |
| 250V | 1133/FS | HS101 – 3 | 0.23kg | |
| 380V/440V | 1133/FS | HS101 – 4 | 0.23kg | |
| 380V/440V | 1133/FS | HS101 – 5 | 0.23kg | |
| -O- | 24V | 1133/2/FS | HS201 – 1 | 0.23kg |
| 110V | 1133/2/FS | HS201 – 2 | 0.23kg | |
| 250V | 1133/2/FS | HS201 – 3 | 0.23kg | |
| 380V/440V | 1133/2/FS | HS201 – 4 | 0.23kg | |
| 380V/440V | 1133/2/FS | HS201 – 5 | 0.23kg | |
| O= | 24V | HS202 – 1 | 0.23kg | |
| 110V | HS202 – 2 | 0.23kg | ||
| 250V | HS202 – 3 | 0.23kg | ||
| 380V/440V | HS202 – 4 | 0.23kg | ||
| 380V/440V | HS202 – 5 | 0.23kg | ||
| -O= | 24V | 1133/3/FS | HS302 – 1 | 0.24kg |
| 110V | 1133/3/FS | HS302 – 2 | 0.24kg | |
| 250V | 1133/3/FS | HS302 – 3 | 0.24kg | |
| 380V/440V | 1133/3/FS | HS302 – 4 | 0.24kg | |
| 380V/440V | 1133/3/FS | HS302 – 5 | 0.24kg | |
| =O= | 24V | 1133/2D/FS | HS402 – 1 | 0.25kg |
| 110V | 1133/2D/FS | HS402 – 2 | 0.25kg | |
| 250V | 1133/2D/FS | HS402 – 3 | 0.25kg | |
| 380V/440V | 1133/2D/FS | HS402 – 4 | 0.25kg | |
| 380V/440V | 1133/2D/FS | HS402 – 5 | 0.25kg |
Attention please: The description may be different with the product, please contact us for quotation.
