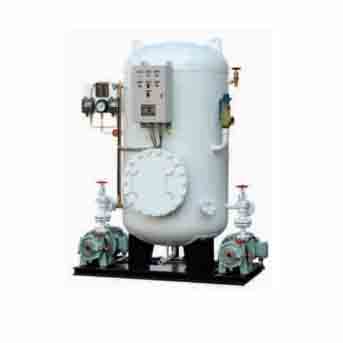

ZYG Series Combined Hydrophore
Application
This series of combined hydrophore is suitable for water supply systems of various types of ships’ fresh water piping systems and seawater piping systems. It integrates hydrophore, electric control box, water pump, pressure switches and pipes. Modular units, compact structure, easy installation and maintenance, beautiful appearance, the most ideal water supply unit.
See Table 1 for the specifications and parameters of the combined hydrophore.
Table 1
| Model | Capacity m³ | Working Pressure MPa | Type of Pump | Motor Power kw | Weight kg | Remark |
|---|---|---|---|---|---|---|
| ZYG0.12/0.4 | 0.12 | 0.4 | 1WZ-0.9 | 1.5 | 300 | Horizontal water pump |
| ZYG0.2/0.4 | 0.2 | 0.4 | 1WZ-0.9 | 1.5 | 350 | Horizontal water pump |
| ZYG0.3/0.4 | 0.3 | 0.4 | 1.5CWX-2 | 2.2 | 430 | Horizontal water pump |
| ZYG0.3/0.4 | 0.3 | 0.4 | 40CLH-2B | 3 | 330 | Vertical water pump |
| ZYG0.5/0.4 | 0.5 | 0.4 | 1.5CWX-2A | 2.2 | 550 | Horizontal water pump |
| ZYG0.5/0.4 | 0.5 | 0.4 | 40CLH-3B | 4 | 450 | Vertical water pump |
| ZYG1.0/0.4 | 1.0 | 0.4 | 1.5CWX-4A | 4 | 650 | Horizontal water pump |
| ZYG1.0/0.4 | 1.0 | 0.4 | 40CLH-3B | 4 | 550 | Vertical water pump |
| ZYG1.5/0.4 | 1.5 | 0.4 | 1.5CWX-4A | 4 | 830 | Horizontal water pump |
| ZYG1.5/0.4 | 1.5 | 0.4 | 40CLH-3B | 4 | 720 | Vertical water pump |
| ZYG2.0/0.4 | 2.0 | 0.4 | 1.5CWX-4A | 4 | 930 | Horizontal water pump |
| ZYG2.0/0.4 | 2.0 | 0.4 | 50CLH-4.5B | 5.5 | 830 | Vertical water pump |
Note: The description may be different with the product, please contact us for quotation.
