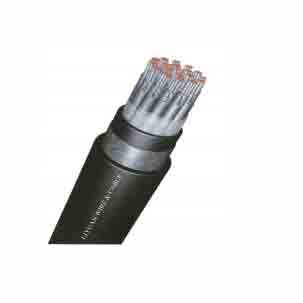

XLPE insulated halogen-free low-smoke shipboard control cable
CKJPJP/SC series, CKJPFP/SC series, 150/250V
Example: CKJPFP86/SC 19X2.5
Type:
CKJPJP/SC, CKJPJP80/SC, CKJPJP90/SC, CKJPJP85/SC, CKJPJP95/SC
CKJPFP/SC, CKJPFP80/SC, CKJPFP90/SC, CKJPFP86/SC, CKJPFP96/SC
Application
The cable is intended for control system of shipboard and off-shore building and it is also applicable to metallurgical industry, chemical works, power plant and mining factory.
Standards applied
| Standard | Description |
|---|---|
| IEC 60092-376 | Design |
| IEC 60228 Class 2 | Conductor |
| IEC 60092-360 | Insulation |
| IEC 60092-360 | Sheath |
| IEC 60332-3-22 | Flame Retardant |
| IEC 60754 | Halogen Free |
| IEC 61034 | Low Smoke |
Construction
| Components | Code | Material/Description |
|---|---|---|
| Series code | CK | Shipboard control cable |
| Conductor | – | Stranded tinned annealed copper (STC), IEC 60228 Class 2 |
| Insulation | J | XLPE, IEC 60092-360 |
| Laying up | – | Cores are laid up together |
| Inner sheath | PJ | Halogen-free flame retardant thermoset compound (SHF2) |
| Inner sheath | PF | Halogen-free flame retardant thermoplastic compound (SHF1) |
| Individual screen | – | Tinned copper wire braided, Alu/polyester tape copper drain wire |
| Armor | 8 | Tinned copper wire braid (TCWB) |
| Armor | 9 | Galvanized steel wire braided (GSWB) |
| Outer sheath | 0 | Without outer sheath |
| Outer sheath | 5 | Halogen-free flame retardant thermoset compound (SHF2) |
| Outer sheath | 6 | Halogen-free flame retardant thermoplastic compound (SHF1) |
| Outer sheath color | – | Black, if any |
| Flammability | SC | LSHF Flame retardant, IEC60332-3-22 (CAT.A) |
Note: The description may be different with the product, please contact us for quotation.
