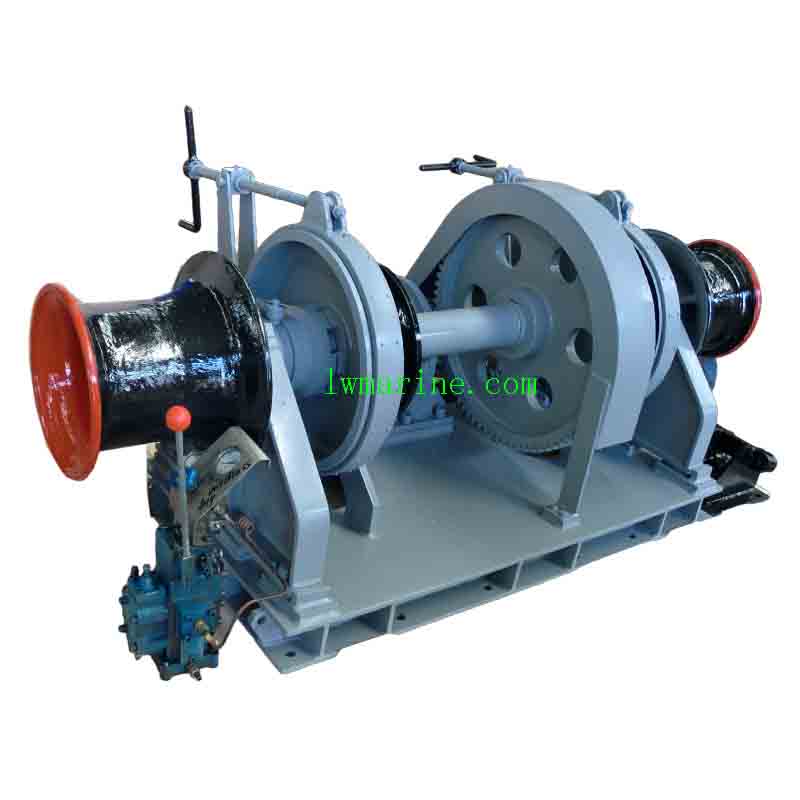

Horizontal Anchor Windlass
Our horizontal anchor windlass is rigorously tested and certified by leading maritime classification societies, including CCS (China Classification Society), DNV-GL (Det Norske Veritas Germanischer Lloyd), ABS (American Bureau of Shipping), LR (Lloyd’s Register), BV (Bureau Veritas), RINA (Registro Italiano Navale), NK (Nippon Kaiji Kyokai), and KR (Korean Register of Shipping). These certifications ensure that our products meet the highest international standards for safety, reliability, and performance in marine applications.
Power Supply Options:
We offer a versatile range of power supply options to cater to diverse marine requirements. Our anchor windlasses are available in electric, hydraulic, diesel, electric combined hydraulic, and diesel combined hydraulic types, ensuring seamless integration into any vessel’s power system.
Product Range & Customization:
Our extensive line of anchor windlasses is designed to handle a wide array of anchor applications. Our windlass winches are engineered to accommodate chains up to 160mm in diameter, with a variety of drive options available to suit specific needs. Standard features include robust fabricated steel construction, gears hardened to exceed working load requirements, clutched and braked drums, and superior corrosion resistance. Additionally, we offer electric or hydraulic drives, along with warping heads, and can customize windlasses to meet your unique application and operational requirements.
Robust Design & Features:
Our marine windlass winches boast a rugged design, featuring heavy-duty split bronze bearings and generously sized brakes for enhanced durability and performance. The operating mechanism for brakes and clutches is designed for easy and safe manual operation, with the option for remote operation via hydraulic cylinders. The brakes are easily adjustable, and all external forces are transferred to the deck construction through foundation bolts, ensuring stability and safety. Our winch designs also facilitate easy access to all points for lubrication and inspections, minimizing maintenance downtime.
Main Technical Specifications:
Electric Combined Anchor Mooring Winch
| Chain Dia.(mm) | Working Load(kN) | Working Speed(m/min) | Mooring Pull(kN) | Mooring Speed(m/min) | Drum Capacity(m) | Motor Power(kW) |
|---|---|---|---|---|---|---|
| 14/16/17.5 | 8.3/10.9/13.0 | ≥9 | 8 | ≥12 | Ф11х100 | 4.3/1.7 |
| … (additional data as per original table) | … | … | … | … | … | … |
Hydraulic Windlass
| Chain Dia.(mm) | Working Load(kN) | Supporting Load(kN) | Working Speed(m/min) | Warping Load(kN) | Motor Power(kW) |
|---|---|---|---|---|---|
| 14/16/17.5 | 8.3/10.9/13.0 | 51/67/80 | ≥9 | 8 | 5.5 |
| … (additional data as per original table) | … | … | … | … | … |
Hydraulic Anchor Mooring Winch
| Chain Dia.(mm) | Working Load(kN) | Working Speed(m/min) | Mooring Pull(kN) | Mooring Speed(m/min) | Drum Capacity(m) | Motor Power(kW) |
|---|---|---|---|---|---|---|
| 14/16/17.5 | 8.3/10.9/13.0 | ≥9 | 8 | ≥12 | Ф11х100 | 5.5 |
| … (additional data as per original table) | … | … | … | … | … | … |
Electric Windlass
| Chain Dia.(mm) | Working Load(kN) | Supporting Load(kN) | Working Speed(m/min) | Warping Load(kN) | Motor Power(kW) |
|---|---|---|---|---|---|
| 12.5 | 5.9 | 30 | ≥9 | 5 | 3/1.2 |
| … (additional data as per original table) | … | … | … | … | … |
FAQs:
- Q: What is the maximum chain diameter that your anchor windlasses can handle?
- A: Our anchor windlasses are designed to accommodate chains up to 160mm in diameter, depending on the specific model and configuration.
- Q: Can I customize the power supply option for my anchor windlass?
- A: Yes, we offer a variety of power supply options, including electric, hydraulic, diesel, electric combined hydraulic, and diesel combined hydraulic types, to suit your vessel’s power system.
- Q: Are your anchor windlasses compliant with international maritime standards?
- A: Absolutely. Our anchor windlasses are rigorously tested and certified by leading maritime classification societies, ensuring compliance with the highest international standards for safety, reliability, and performance.
- Q: How easy is it to maintain and inspect your anchor windlasses?
- A: Our winch designs facilitate easy access to all points for lubrication and inspections, minimizing maintenance downtime and ensuring optimal performance over time.
- Q: Can I get a customized anchor windlass solution for my specific application?
- A: Yes, we specialize in providing customized anchor windlass solutions tailored to your unique application and operational requirements. Contact us to discuss your specific needs and receive a personalized quote.
Please Note: The description might be incorrect, please contact us for confirmation.
