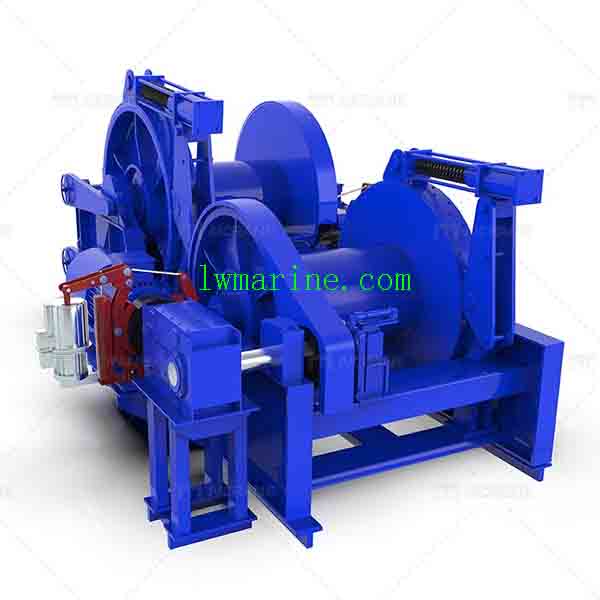

Electric Waterfall Warping Winch for Tugs and Offshore Vessels
Our electric waterfall warping winch is engineered to meet the rigorous demands of all types of tugs and offshore vessels, seamlessly integrating with cable lifters for enhanced functionality. These robust winches are available in a comprehensive range, spanning from 5 to 200 tons, ensuring that there’s a perfect match for every application, whether it’s for heavy-duty towing operations or precise maneuvering tasks in marine environments.
Key features of our electric waterfall winches include:
- Towing Drum with Band Brake: The towing drum is designed to be declutchable, allowing for easy disengagement when necessary. It comes equipped with a reliable band brake system that ensures smooth and controlled stopping power.
- Automatic/Mechanical Spooling Device: This innovative feature facilitates effortless cable management, automatically or mechanically guiding the cable onto the drum in an orderly manner, minimizing tangles and maximizing efficiency.
- Hydraulically Remotely Controlled Friction Clutch and Spindle Band Brake: Both the friction clutch and spindle band brake are hydraulically remotely controlled, providing operators with precise and safe control from a distance. Additionally, manual operation of the spindle band brake is also possible directly at the winch, offering flexibility in various operational scenarios. The friction clutch guarantees that the drum can be disengaged in any towing situation without risking damage to the driving components.
- Warping Head Fixed on Intermediate Shaft: The warping head is securely mounted on the intermediate shaft, enhancing the stability and reliability of the winch during operation, especially in demanding marine conditions.
Main Technical Specifications
| Rated Pull (kN) | Rated Speed (m/min) | Drum Capacity (m) | Motor Power (kW) |
|---|---|---|---|
| 5 | ≥12 | Ф8×100 | 3/1.2 |
| 10 | ≥12 | Ф10×150 | 4.3/1.7 |
| 20 | ≥12 | Ф15×150 | 8.5/3.5 |
| 30 | ≥15 | Ф17×150 | 11/11/7.5 |
| 40 | ≥15 | Ф18×150 | 16/16/11 |
| 50 | ≥15 | Ф20.5×150 | 22/22/16 |
| 75 | ≥15 | Ф26×200 | 30/30/22 |
| 80 | ≥15 | Ф26×200 | 30/30/22 |
| 100 | ≥15 | Ф30×200 | 45/45/30 |
| 125 | ≥15 | Ф30×200 | 45/45/30 |
| 160 | ≥15 | Ф32×250 | 60/60/45 |
| 200 | ≥9.6 | Ф41×250 | 60/60/45 |
| 250 | ≥9.6 | Ф44.5×250 | 60/60/45 |
| 315 | ≥7.8 | Ф52×250 | 60/60/45 |
| 400 | ≥7.8 | Ф56×250 | 85/85/64 |
| 450 | ≥7.8 | Ф56×250 | 85/85/64 |
| 500 | ≥7.8 | Ф58×250 | 85/85/64 |
| 560 | ≥6 | Ф64×250 | 85/85/64 |
| 600 | ≥6 | Ф64×250 | 85/85/64 |
| 650 | ≥6 | Ф70×250 | 85/85/64 |
| 1000 | ≥4 | Ф85×250 | 85/85/64 |
| 1200 | ≥4 | Ф95×250 | 120/120/90 |
| 1500 | ≥4 | Ф95×250 | 150/150/72 |
| 1800 | ≥4 | Ф95×250 | 150/150/72 |
| 2000 | ≥4 | Ф100×250 | 180/180/135 |
FAQs
Q1: What types of vessels are these electric waterfall winches suitable for?
A1: Our electric waterfall winches are designed for all types of tugs and offshore vessels, providing reliable performance in a variety of marine applications.
Q2: Can these winches be integrated with cable lifters?
A2: Yes, our electric waterfall winches can be seamlessly integrated with cable lifters, enhancing their functionality and versatility in marine operations.
Q3: What is the advantage of having a declutchable towing drum?
A3: A declutchable towing drum allows for easy disengagement of the drum when necessary, facilitating maintenance and reducing the risk of damage to the driving components during towing operations.
Q4: How does the automatic/mechanical spooling device improve cable management?
A4: The automatic/mechanical spooling device guides the cable onto the drum in an orderly manner, minimizing tangles and ensuring efficient cable management during operation.
Q5: Can the friction clutch and spindle band brake be controlled remotely?
A5: Yes, both the friction clutch and spindle band brake are hydraulically remotely controlled, providing operators with precise and safe control from a distance. Manual operation at the winch is also possible for added flexibility.
Please Note: The description might be incorrect, please contact us for confirmation.
