Wafer check valve — Wafer Type 5K&10K

Wafer check valve — Wafer Type 5K&10K

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

Category: Marine Valve

Description

SERIES 5K&10K Wafer check valve — Wafer Type

Manufactured in accordance to jisB2002
Flanges as per jis

Part Nr.	Material	Code
1- Body	Cast iron	FC
2- Seat	Rubber	NBR
3- Disc	SUS	SUS304
3- Stem	SUS	SUS403

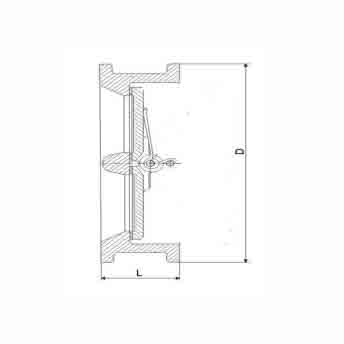

Side View

Pressure	5K	10K
Body	1.03	2.06
Seat	0.76	1.47

Size	Wafer check valve 5K					Wafer check valve 10K
	D	D1	L	N	KG	D	D1	L	N	KG
50	90	105	60	4×Φ15	1.5	90	120	60	4×Φ21	1.5
65	115	130	67	4×Φ15	2.4	115	140	67	4×Φ21	2.4
80	126	145	73	4×Φ21	3.6	126	150	73	8×Φ21	3.6
100	146	165	73	8×Φ19	5.7	146	175	73	8×Φ21	5.7
125	181	200	86	8×Φ21	7.3	181	210	86	8×Φ25	7.3
150	211	230	98	8×Φ21	9	211	240	98	8×Φ25	9
200	257	280	127	8×Φ23	17	257	290	127	12×Φ23	17
250	322	345	146	12×Φ25	26	322	355	146	12×Φ25	26
300	367	390	181	12×Φ25	42	367	400	181	16×Φ27	42
350	410	435	184	12×Φ27	55	410	445	184	16×Φ27	55
400	470	495	190	16×Φ25	75	470	510	190	16×Φ29	75

Note: The description may be different with the product, please contact us for quotation.
