DIN Mud box
Standards:
- Face to face to DIN87151.
- Inspection to EN12266-1.
Description:

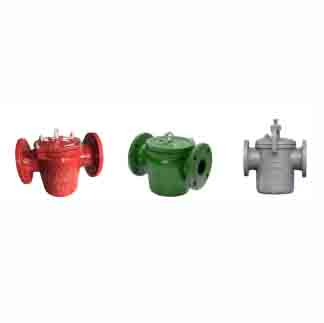

[Images of DIN mud boxes in different colors and a technical drawing]
| PART NAME | Litting lug | Cover | Gasket | Body | Screen | Bolts | Drain plug |
|---|---|---|---|---|---|---|---|
| MATERIAL | Steel | Cast iron | NBR | Cast iron | Stainless Steel | Stainless Steel | Brass |
| DN | L | Dg | Dk | D | f | b | n-d | H1 | H2 |
|---|---|---|---|---|---|---|---|---|---|
| DN40 | 200 | 84 | 110 | 150 | 3 | 19 | 4-∅8 | 107 | 113 |
| DN50 | 230 | 99 | 125 | 165 | 3 | 19 | 4-∅8 | 115 | 123 |
| DN65 | 290 | 118 | 145 | 185 | 3 | 19 | 4-∅8 | 138 | 132 |
| DN80 | 310 | 132 | 160 | 200 | 3 | 19 | 8-∅8 | 151 | 140 |
| DN100 | 350 | 156 | 180 | 220 | 3 | 19 | 8-∅8 | 182 | 150 |
| DN125 | 400 | 184 | 210 | 250 | 3 | 19 | 8-∅8 | 239 | 160 |
| DN150 | 480 | 211 | 240 | 285 | 3 | 19 | 8-∅8 | 257 | 185 |
| DN200 | 600 | 266 | 295 | 340 | 3 | 20 | 8-∅8 | 333 | 227 |
| DN250 | 600 | 319 | 350 | 395 | 3 | 22 | 12-∅22 | 330 | 284 |
| DN300 | 600 | 370 | 400 | 445 | 4 | 24.5 | 12-∅22 | 350 | 315 |
| DN350 | 610 | 429 | 460 | 505 | 4 | 24.5 | 15-∅22 | 334 | 341 |
| DN400 | 740 | 480 | 515 | 565 | 4 | 24.5 | 15-∅28 | 381 | 376 |
Main Features:
Advantage:
- Prevent clogging: By blocking solid particles, it can effectively prevent clogging of the pipeline system and reduce maintenance costs.
- High reliability: It has stable performance and long service life, and can operate continuously and stably.
- Easy maintenance: simple structure, easy to clean and maintain, ensuring long-term and effective use.
Usage: DIN straight-through cast iron mud box valves are mainly used in industrial pipeline systems, especially when it is necessary to control impurities and solid particles in the fluid to avoid clogging the pipeline and damaging the equipment. This kind of valve is widely used in pipe networks in industrial fields such as sewage treatment plants, water supply systems, chemical plants, etc. It can effectively maintain the normal operation of the pipeline system and improve the reliability and stability of the system.
