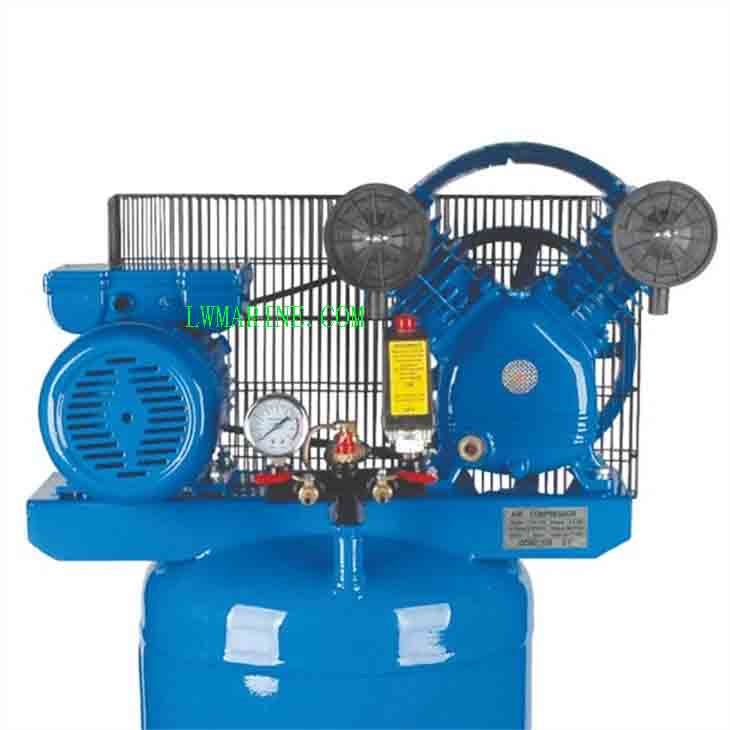

Vertical Marine Air Compressor – Space-Saving High-Pressure Solution for Ships
Compact & Powerful Compressed Air System for Marine Applications
The Vertical Marine Air Compressor is an engineered-for-marine compressed air solution designed to maximize performance while minimizing footprint in space-constrained vessel engine rooms. With ultra-high pressure capabilities up to 14.7 MPa, these stainless steel constructed compressors deliver reliable compressed air for critical shipboard systems while withstanding harsh marine conditions.
Key Features & Benefits
✔ Space-Optimized Vertical Design – Compact dimensions (from 555×585×940mm) ideal for tight marine installations
✔ Extreme Pressure Performance – 14.7 MPa working pressure for specialized marine applications
✔ Marine-Grade Durability – Stainless steel construction resists saltwater corrosion
✔ Advanced Cooling System – Water-cooled intercoolers/aftercoolers prevent overheating
✔ Energy Efficient Operation – Optimized motor systems (7.5-11kW) reduce power consumption
Technical Specifications
| Model | Capacity (m³/h) | Pressure (MPa) | Speed (r/min) | Weight (kg) | Dimensions (mm) | Power |
|---|---|---|---|---|---|---|
| CZ-0.27/150 | 0.27 | 14.7 | 1000 | 210 | 555×585×940 | 7.5kW (10HP) |
| CZ-0.42/150 | 0.42 | 14.7 | 1000 | 270 | 620×650×1000 | 11kW (15HP) |
| CZ-0.43/150 | 0.43 | 6.0 | 1000 | 270 | 620×650×1000 | 11kW (15HP) |
The description/sizes may be different with goods, please check with us when order.
