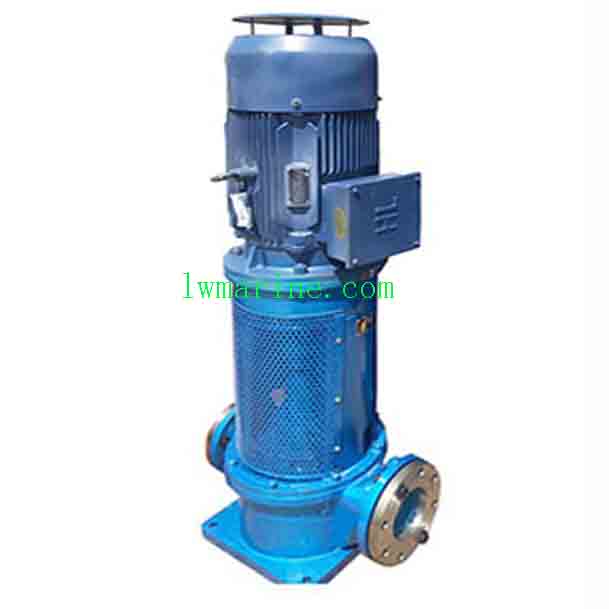

CLH Series Vertical Centrifugal Pump for Ship
The CLH Series Vertical Centrifugal Pump for Ship delivers reliable performance in demanding marine and industrial environments. Engineered to international standards, this single-stage, single-suction centrifugal pump features a space-saving vertical design with horizontal inlet and vertical outlet configuration. It efficiently handles various fluid transfer applications with maximum fluid temperature of 75°C.
Key Features & Benefits:
-
Multi-Purpose Application: Suitable for ballast transfer, bilge pumping, drainage, cooling systems, and fire protection onboard vessels
-
Industrial Versatility: Ideal for petrochemical pipelines, high-rise building water supply, and circulation booster systems
-
Easy Maintenance: Simplified flange connection design enables quick disassembly and service
-
Space Optimization: Compact vertical design perfect for limited engine room spaces
-
Interchangeable Performance: Compatible with CSG, CSGB, and CSW pump models
-
Energy Efficient: Optimized hydraulic design ensures reduced power consumption
Performance Specifications (50Hz/60Hz Operation):
| Model | Capacity (m³/h) | Head (m) | Speed (rpm) | Motor Power (kW) | Efficiency (%) | NPSHr (m) |
|---|---|---|---|---|---|---|
| CLH40-100 | 2.2-4.2 | 2.8-3.3 | 1400 | 0.12 | 48 | 2.5 |
| CLH40-125 | 2.2-4.2 | 4.5-5.5 | 1400 | 0.18 | 40 | 2.5 |
| CLH40-160 | 2.2-4.2 | 7.5-8.5 | 1400 | 0.25 | 36 | 2.5 |
| CLH40-200 | 2.2-4.2 | 12-13 | 1450 | 0.55 | 31 | 2.5 |
| CLH40-250 | 2.2-4.2 | 18.5-20.5 | 1450 | 1.1 | 25 | 2.5 |
Note: The description might be incorrect, please contact us for confirmation.
