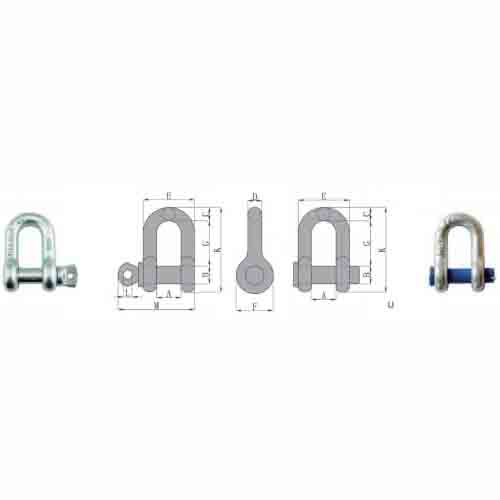

US Type Dee Shackle

Material: Body – 45# Carbon Steel, Pin – 40Cr Alloy Steel
Surface Finishes: Electro Galvanized, Hot Dip Galvanized, Dacromet, Powder Coated

Size (in)	WLL (t)	A	B	C	D	E	F	G	K	L	M	Weight (lbs) G-210	Weight (lbs) G-215
1/4	1/2	0.47	0.31	0.25	0.25	0.97	0.62	0.97	1.59	0.10	1.43	0.11	0.10
5/16	3/4	0.53	0.38	0.31	0.31	1.15	0.75	1.07	1.91	0.22	1.71	0.17	0.18
3/8	1	0.56	0.44	0.38	0.38	1.42	0.92	1.28	2.31	0.25	2.02	0.24	0.25
7/16	1 1/2	0.75	0.50	0.44	0.44	1.63	1.06	1.48	2.67	0.31	2.37	0.40	0.40
1/2	2	0.81	0.63	0.50	0.50	1.81	1.18	1.66	3.03	0.38	2.69	0.59	0.50
5/8	3 1/4	1.06	0.75	0.62	0.63	2.32	1.50	2.04	3.76	0.44	3.34	1.21	1.21
3/4	4 3/4	1.25	0.88	0.81	0.75	2.75	1.81	2.40	4.53	0.50	3.97	2.25	2.00
7/8	6 1/2	1.44	1.00	0.97	0.88	3.20	2.10	2.86	5.33	0.50	4.50	3.16	3.28
1	8 1/2	1.69	1.13	1.00	1.00	3.69	2.38	3.24	5.94	0.56	5.13	4.75	4.75
1 1/8	9 1/2	1.81	1.25	1.25	1.13	4.07	2.69	3.61	6.78	0.63	5.71	6.75	6.30
1 1/4	12	2.03	1.38	1.38	1.25	4.53	3.00	3.97	7.50	0.69	6.25	9.06	9.06
1 3/8	13 1/2	2.25	1.50	1.50	1.38	5.01	3.31	4.43	8.28	0.75	6.53	11.63	12.00
1 1/2	17	2.38	1.62	1.62	1.50	5.38	3.62	4.87	9.05	0.81	7.33	15.95	16.15
1 3/4	25	2.88	2.12	2.12	1.75	6.38	4.19	5.78	10.97	1.00	9.05	26.75	29.96
2	35	3.25	2.00	2.00	2.00	7.25	5.00	6.77	12.74	1.22	10.35	42.31	43.25
2 1/2	55	4.12	2.62	2.63	2.63	9.38	5.68	8.07	14.85	1.38	13.00	71.75	—

Note: The description may be different with the product, please contact us for quotation.
