Type JIS Single-Bite Bollard
Type JIS Single-Bite Bollard

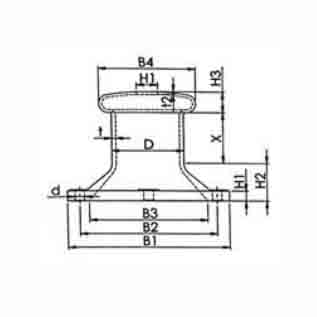

| Model no. | Size (mm) | Weight (KG) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | X | t | B4 | H3 | t2 | H1 | H2 | B3 | B1 | B2 | d | |||
| 15T | 250 | 290 | 20 | 400 | 87 | 25 | 45 | 100 | 430 | 600 | 500 | 43 | 130 | |
| 25T | 300 | 290 | 20 | 480 | 105 | 15 | 60 | 130 | 510 | 725 | 600 | 55 | 220 | |
| 35T | 300 | 290 | 25 | 480 | 105 | 16 | 60 | 130 | 510 | 725 | 600 | 55 | 230 | |
| 50T | 350 | 330 | 27 | 550 | 122 | 18 | 70 | 160 | 600 | 810 | 700 | 66 | 350 | |
| 70T | 400 | 380 | 30 | 610 | 140 | 23 | 80 | 190 | 680 | 900 | 800 | 74 | 530 | |
| 100T | 450 | 410 | 35 | 720 | 157 | 25 | 80 | 270 | 860 | 1180 | 1000 | 74 | 893 | |
| 150T | 530 | 510 | 40 | 880 | 192 | 29 | 100 | 340 | 1010 | 1440 | 1220 | 91 | 1450 | |
| 200T | 750 | 550 | 43 | 1030 | 227 | 30 | 110 | 410 | 1240 | 1700 | 1440 | 101 | 2230 |
Note: The description may be different with the product, please contact us for quotation.
