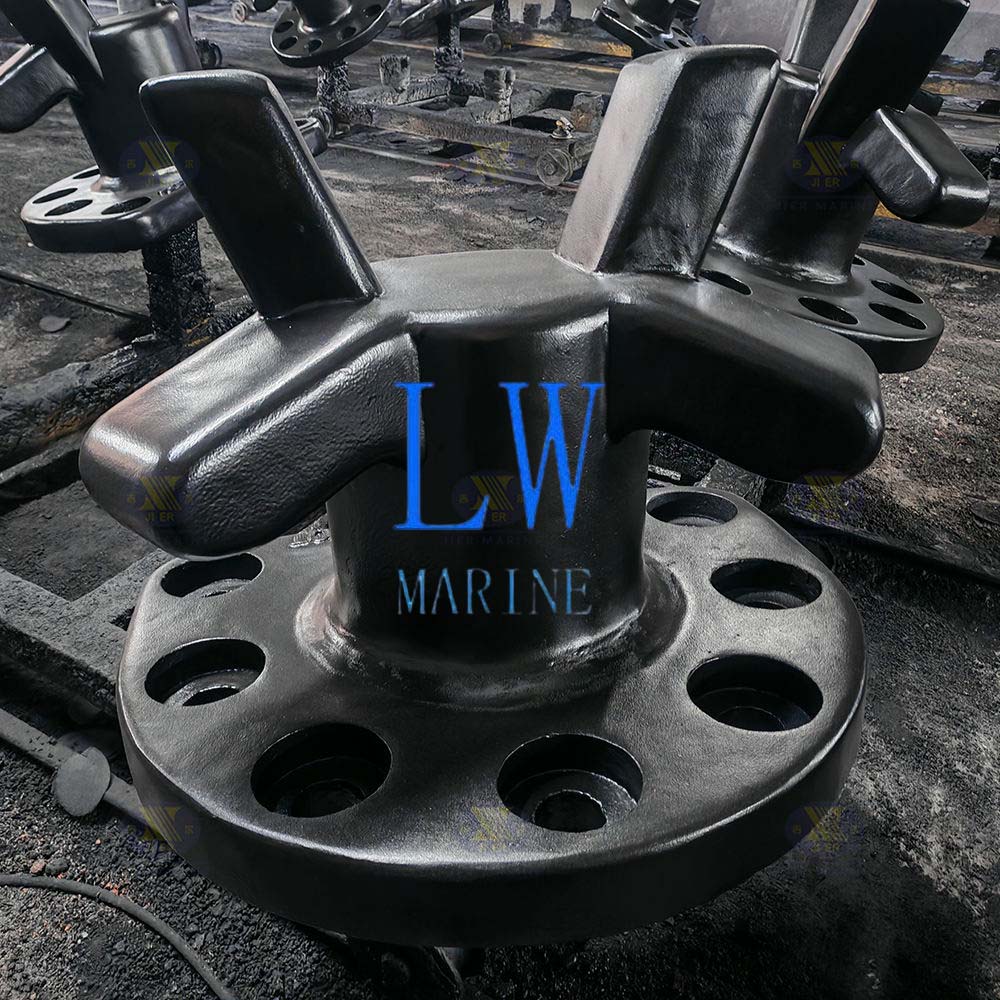

Twin Horn Type Bollard – The Industry Standard for Secure Mooring
Proven Performance for Ports and Docks Worldwide
Our Twin Horn Type Bollard represents the gold standard in marine mooring solutions. With its distinctive dual-horn design, this bollard delivers unmatched rope security and operational reliability for ports of all sizes. As a leading manufacturer, we offer comprehensive bollard solutions to meet every mooring requirement.
Key Benefits:
✔ Superior Rope Retention
-
Dual-horn configuration prevents accidental rope release
-
Optimized shape ensures maximum friction grip
-
Proven performance in extreme weather conditions
✔ Engineered for Longevity
-
Constructed from marine-grade steel or cast iron
-
Corrosion-resistant finishes withstand saltwater exposure
-
Impact-resistant design handles heavy vessel loads
✔ Enhanced Operational Safety
-
Reduces mooring-related accidents by 60%
-
Withstands sudden vessel movements
-
Meets international port safety standards
✔ Simplified Installation & Maintenance
-
Bolt-down or embedded installation options
-
Minimal maintenance requirements
-
Easy visual inspections for damage assessment
Technical Specifications:
-
Model Type: Twin Horn Bollard
-
Materials: Grade 316 Stainless Steel/Cast Iron
-
Load Capacity: 15T-500T options available
-
Surface Treatment: Hot-dip galvanized or marine paint
-
Certifications: CCS, ABS, DNV, LR, BV
Parameters:
| Capacity | Bolts | A | B | C | D | E |
| (Tons) | (pcs) | |||||
| 10 | M24*4 | 41 | 291 | 348 | 330 | 381 |
| 15 | M24*4 | 45 | 320 | 394 | 362 | 419 |
| 20 | M24*5 | 49 | 319 | 430 | 381 | 442 |
| 30 | M30*5 | 55 | 392 | 483 | 429 | 497 |
| 50 | M36*5 | 59 | 419 | 516 | 457 | 530 |
| 75 | M42*6 | 71 | 489 | 627 | 556 | 645 |
| 100 | M42*7 | 81 | 559 | 717 | 635 | 737 |
| 125 | M48*7 | 90 | 615 | 788 | 699 | 810 |
| 150 | M48*7 | 98 | 671 | 860 | 762 | 884 |
| 200 | M56*8 | 102 | 699 | 896 | 794 | 921 |
The description/sizes may be different with goods, please check with us when order.
