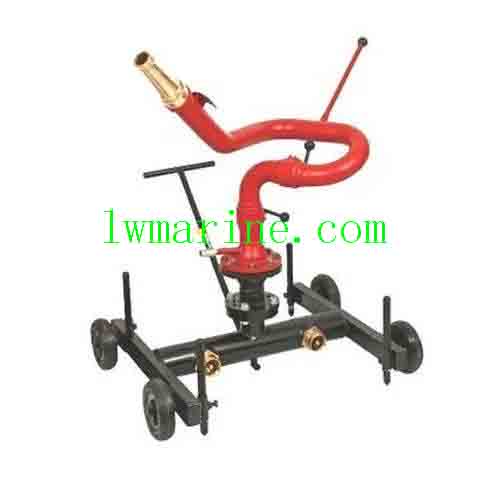

Trolley Fire Monitor
Engineered with advanced firefighting technology from global innovations, our Trolley Fire Monitor offers exceptional mobility and versatile performance for challenging environments. Available in both water-only (PSY series) and water-foam dual-purpose (PLY series) configurations, this highly portable unit is designed for rapid deployment in areas distant from water sources. Its robust yet straightforward design ensures reliable operation across various settings, including fire trucks, marine vessels, mining operations, storage facilities, and oil fields. Operators can easily direct the monitor through smooth horizontal and vertical rotation for precise fire targeting.
Key Features:
-
Enhanced Mobility: Wheeled design allows easy transportation and positioning in remote or hard-to-reach locations.
-
Dual Suppression Modes: Choose between water-only or combined water-foam operation for different fire classes.
-
Simple & Robust Structure: User-friendly design ensures quick setup and reliable performance in emergency situations.
-
Stable Performance: Consistent water/foam delivery maintained across various pressure conditions (0.5-1.2 Mpa).
-
Full-Range Movement: -30° to +70° pitching angle with 360° rotation for complete directional control.
-
Versatile Connectivity: Standard flange connections ensure compatibility with various water sources and equipment.
Technical Specifications:
PSY Series (Water Monitor)
-
Models: PSY20 to PSY50
-
Flow Range: 20–50 L/S
-
Jetting Distance: ≥48–65 m
-
Working Pressure: 0.5–1.0 Mpa
-
Pitching Angle: -30° to +70°
-
Rotation Angle: 0–360°
-
Spraying Angle: 0–110°
-
Connection: Standard connecting flange
PLY Series (Foam/Water Monitor)
-
Models: PLY24 to PLY48
-
Flow Range (Water/Foam): 24–48 L/S | 40–55 m (foam)
-
Working Pressure: 0.5–1.2 Mpa
-
Pitching Angle: -30° to +70°
-
Rotation Angle: 0–360°
-
Connection: Standard connecting flange
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
