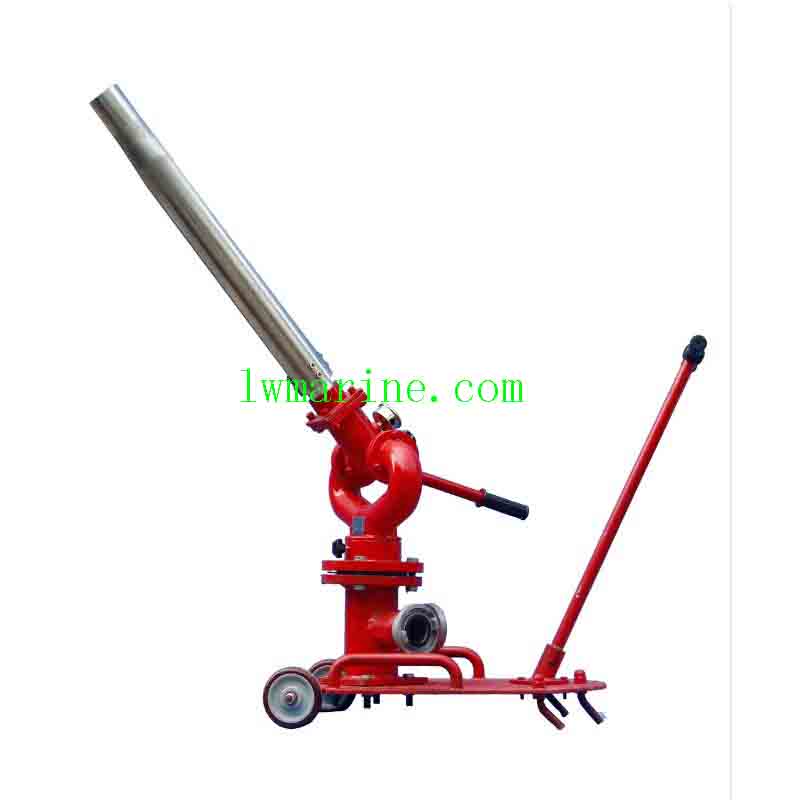

Portable Fire Water Monitor
Our Portable Fire Water Monitor is engineered for rapid deployment in locations where traditional fire trucks cannot access or where water sources are distant. This highly mobile unit features a sturdy chassis, adjustable inlet piping, a fully rotational body, and a multi-functional monitor head capable of switching between a powerful water jet and a wide-coverage water mist. Designed for versatility and reliability, it ensures effective fire suppression in challenging environments such as industrial sites, forests, remote facilities, and emergency scenarios.
Key Advantages
Adjustable Flow & Spray Patterns: Seamlessly transition from high-impact water column to penetrating water mist for optimized firefighting.
Exceptional Reach & Coverage: Projects water up to 85 meters to combat fires from a safe distance.
Robust Construction: Built with corrosion-resistant, impact-tolerant materials for durability in harsh conditions.
Ultimate Portability: Lightweight design with integrated wheels and handles for easy transport and positioning.
User-Friendly Operation: Intuitive controls and clear gauges enable quick setup and stress-free operation.
Broad Compatibility: Connects effortlessly to various hoses, pumps, and adapters using standard flange interfaces.
Technical Specifications
PSY Series (Manual Operation)
Model Flow Range (L/S) Jetting Range (≥m) Working Pressure (MPa) Pitching Angle (°) Rotation Angle (°) Spraying Angle (°) Connecting Method
PSY20 20 48 0.5～1.0 -30～+70 0-360 0-110 Connecting Flange
PSY25 25 50
PSY30 30 55
PSY40 40 60
PSY50 50 65
PSKDY Series (Remote Control Operation)
Model Flow Range (L/S) Jetting Range (≥m) Working Pressure (MPa) Pitching Angle (°) Rotation Angle (°) Voltage Remote Distance (≥m) Weight (≤kg) Connecting Method
PSKDY30 30 50 0.8 +30～+70 ±90 24V/DC 150 30 KY80 or KYK80
PSKDY40 40 55
PSKDY50 50 60
PSKDY60 60 65 1.0
PSKDY80 80 85 1.1
Note: The description might be incorrect, please contact us for confirmation.
