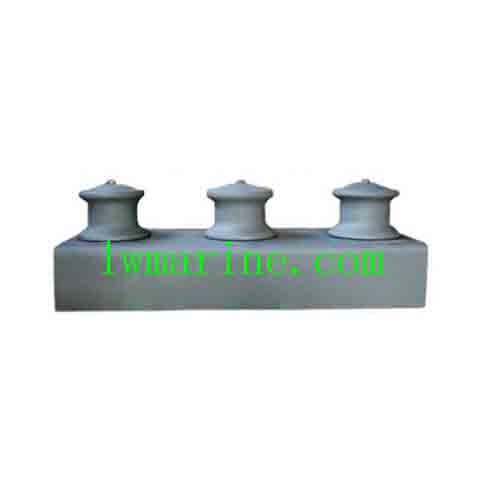

Triple Roller Fairlead – Optimal Rope Guiding & Marine Mooring Solution
Introducing our premium Triple Roller Fairlead, a robust and efficient device designed to guide ropes seamlessly during marine mooring operations. This fairlead features three horizontal rollers, ensuring smooth and reliable cable direction changes. It adheres to the standard CB*3062-79 type A, guaranteeing compatibility and performance in various marine applications.
Key Features & Long-Tail Keywords:
- 3 Horizontal Rollers Design: The fairlead is equipped with three horizontal rollers, facilitating effortless rope guiding and reducing friction during mooring.
- Standard CB*3062-79 Type A Compliance: Adopts the industry-standard CB*3062-79 type A, ensuring reliability and compatibility with existing marine mooring systems.
- Wide Range of Rope Diameters: Supports steel wire diameters from 19.5mm to 68mm and nylon rope diameters from 36mm to 100mm, catering to diverse mooring needs.
- Impeccable Surface Finish: Features a clean, smooth surface without any defects, enhancing its aesthetic appeal and durability.
- Lubricated Rollers and Shafts: Rollers and shafts are filled with lubricants, reducing wear and tear and extending the service life of the fairlead.
- Quality Certified: Passes rigorous tests conducted by quality inspection centers and comes with a quality certificate, ensuring adherence to high standards.
- Anticorrosive Paint Coating: Painted with anticorrosive paint, protecting the fairlead from environmental damage and corrosion.
- Customizable Production: Can be supplied according to standard specifications or customer’s drawings, offering flexibility and tailored solutions.
Drawing Specifications: CB*3062 Three Rollers Fairlead
| Wire Rope Diameter(mm) | Nylon Rope Diameter(mm) | E(mm) | F(mm) | D(mm) | d(mm) | L(mm) | L1(mm) | L2(mm) | L3(mm) | B(mm) | B1(mm) | B2(mm) | H(mm) | H1(mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 19.5 | 36 | 200 | 257 | 100 | 40-0.5 | 644 | 416 | 300 | 544 | 238 | 194 | 108 | 508 | 330 | 138 |
| 22.5 | 40 | 200 | 275 | 120 | 50-0.5 | 728 | 456 | 320 | 608 | 280 | 232 | 128 | 552 | 360 | 212 |
| 26.0 | 45 | 200 | 311 | 130 | 55-0.5 | 776 | 480 | 330 | 646 | 304 | 250 | 138 | 606 | 405 | 273 |
| 32.0 | 70 | 220 | 328 | 150 | 65-0.5 | 880 | 450 | 370 | 730 | 346 | 288 | 158 | 670 | 435 | 401 |
| 34.5 | 80 | 240 | 358 | 160 | 70-0.5 | 940 | 580 | 400 | 780 | 370 | 308 | 168 | 710 | 470 | 469 |
| 37.5 | 85 | 240 | 383 | 180 | 80-0.5 | 1030 | 620 | 420 | 850 | 417 | 345 | 190 | 770 | 510 | 678 |
| 43.0 | 95 | 260 | 411 | 200 | 90-0.5 | 1136 | 686 | 460 | 936 | 459 | 385 | 210 | 820 | 550 | 866 |
| 52.0 | 100 | 260 | 450 | 230 | 100-0.5 | 1256 | 746 | 490 | 1026 | 521 | 445 | 240 | 910 | 605 | 1197 |
| 60.5 | – | 300 | 493 | 260 | 120-0.5 | 1430 | 850 | 560 | 1170 | 590 | 500 | 270 | 1000 | 670 | 1741 |
| 68.5 | – | 320 | 563 | 320 | 150-0.5 | 1690 | 990 | 640 | 1370 | 714 | 620 | 330 | 1130 | 770 | – |
FAQs:
Q1: What is the maximum rope diameter that the Triple Roller Fairlead can accommodate?
A1: The 3-Rollers Fairlead can accommodate steel wire diameters up to 68mm and nylon rope diameters up to 100mm, making it suitable for a wide range of mooring applications.
Q2: Is the 3-Rollers Fairlead compliant with industry standards?
A2: Yes, the fairlead adheres to the standard CB*3062-79 type A, ensuring compatibility and performance in various marine mooring systems.
Q3: How does the lubrication between rollers and shafts benefit the fairlead?
A3: The lubrication between rollers and shafts reduces friction and wear, extending the service life of the fairlead and ensuring smooth rope guiding during mooring operations.
Q4: Can the 3-Rollers Fairlead be customized according to specific requirements?
A4: Yes, the fairlead can be supplied according to standard specifications or customer’s drawings, offering flexibility and tailored solutions to meet specific mooring needs.
Q5: What type of coating is applied to the Triple Roller Fairlead for protection?
A5: The fairlead is painted with anticorrosive paint, protecting it from environmental damage and corrosion, ensuring long-lasting performance in harsh marine conditions.
Please Note: The description might be incorrect, please contact us for confirmation.
