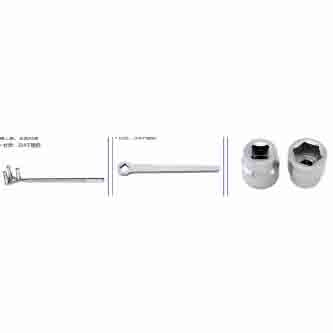

Stainless Steel Three-point Valve Wrench

Stainless Steel Three-point Valve Wrench

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

Category:
Stainless Steel Three-point Valve Wrench

Valve Wrench
• Application: Used for opening and closing various large, medium and small valves, pipe valves, fire pipe valves, etc.
• Material: 304 Stainless steel

Model Length L (mm) Weight (kg)
5025-300 300 0.80
5025-350 350 0.98
5025-400 400 1.20
5025-450 450 1.30
5025-500 500 1.45
5025-550 550 1.55
5025-600 600 1.65
5025-650 650 1.80
5025-700 700 1.95
5025-750 750 2.10
5025-800 800 2.25
5025-850 850 2.40
5025-900 900 2.55
5025-1000 1000 2.80
5025A Stainless Steel Long Square Valve Wrench

Ratchet Wrench
• Application: Used for opening and closing fire hydrants, large and small valves, etc.
• Material: 304 Stainless steel

Model Length L (mm) CT/CP (mm) Weight (kg)
5025A-12 DN15 12*12 0.25
5025A-14 DN20 14*14 0.28
5025A-17 DN25 17*17 0.30
5025A-19 DN32 19*19 0.32
5025A-22 DN40 22*22 0.35
5025A-24 DN50 24*24 0.38
5025A-27 DN65 27*27 0.48
5025A-30 DN80 30*30 0.55
5025A-32 DN100 32*32 0.60
5025A-36 DN125 36*36 0.70
5025A-41 DN150 41*41 0.80
5025A-46 DN200 46*46 0.90
5025A-50 DN250 50*50 1.00
5025A-55 DN300 55*55 1.20
5025A-60 DN350 60*60 1.45
5025B Stainless Steel Square Valve Wrench

Square Wrench
• Application: Used for opening and closing large valves, etc.
• Material: 304 Stainless steel

Model Length L (mm) CT/CP (mm) Weight (kg)
5025B-08 DN15 8*8 0.17
5025B-10 DN20 10*10 0.19
5025B-12 DN25 12*12 0.21
5025B-14 DN32 14*14 0.23
5025B-16 DN40 16*16 0.25
5025B-19 DN50 19*19 0.28
5025B-22 DN65 22*22 0.35
5025B-24 DN80 24*24 0.45
5025B-27 DN100 27*27 0.55
5025B-30 DN125 30*30 0.65
5025B-32 DN150 32*32 0.75
5025B-36 DN200 36*36 0.85
5025B-41 DN250 41*41 1.00
5025B-46 DN300 46*46 1.30
5025C Stainless Steel Double-head C-type Wrench

Wrench C
• Application: Used for opening and closing gate valves, etc.
• Material: 304 Stainless steel

Model Length L (mm) Weight (kg)
5025C-200 200 0.50
5025C-250 250 0.60
5025C-300 300 0.75
5025C-350 350 0.90
5026 Stainless Steel 1/2″ Socket

Socket 1/2″
• Material: 304 Stainless steel

Model S (mm) L (mm) Weight (kg)
5026-8 8 40 0.08
5026-9 9 40 0.08
5026-10 10 40 0.09
5026-11 11 40 0.10
5026-12 12 40 0.10
5026-13 13 40 0.11
5026-14 14 40 0.12
5026-15 15 40 0.13
5026-16 16 40 0.13
5026-17 17 40 0.14
5026-18 18 40 0.14
5026-19 19 40 0.16
5026-20 20 40 0.17
5026-21 21 40 0.18
5026-22 22 40 0.18
5026-23 23 40 0.19
5026-24 24 45 0.20
5026-25 25 45 0.21
5026-26 26 45 0.22
5026-27 27 45 0.23
5026-28 28 45 0.25
5026-30 30 45 0.28
5026-32 32 45 0.30
5026A Stainless Steel Three-prong Wrench

Three-prong Wrench
• Application: Used for opening and closing large gate valves and valves in flammable and explosive places.
• Material: 304 Stainless steel

Model Length L (mm) S (mm) Weight (kg)
5026A-01 150 12 0.35
5026A-02 200 14 0.50
5026A-03 230 17 0.60
5026A-04 300 19 0.85
5026B Stainless Steel T-type Socket Wrench

T-Type Socket Wrench
• Application: Used for fastening or disassembling small bolts and nuts.
• Material: 304 Stainless steel

Model S (mm) L (mm) Weight (kg)
5026B-8 8 180 0.25
5026B-10 10 180 0.28
5026B-12 12 180 0.30
5026B-14 14 190 0.35
5026B-15 15 190 0.36
5026B-16 16 190 0.38
5026B-17 17 190 0.40
5026B-18 18 190 0.42
5026B-19 19 190 0.45
5027 Stainless Steel 3/4″ Socket

Heavy Duty Socket 3/4″
• Material: 304 Stainless steel

Model S (mm) L (mm) Weight (kg)
5027-19 19 50 0.26
5027-20 20 50 0.27
5027-21 21 50 0.28
5027-22 22 50 0.29
5027-23 23 50 0.30
5027-24 24 50 0.31
5027-25 25 50 0.32
5027-26 26 50 0.33
5027-27 27 50 0.34
5027-28 28 55 0.35
5027-30 30 55 0.38
5027-32 32 55 0.40
5027-34 34 55 0.44
5027-35 35 55 0.46
5027-36 36 60 0.47
5027-37 37 60 0.50
5027-38 38 60 0.51
5027-41 41 60 0.57
5027-42 42 60 0.60
5027-44 44 60 0.63
5027-46 46 65 0.65
5027-50 50 65 0.71
5027-55 55 70 0.78
5027-60 60 70 0.85
5027-63 63 70 0.88
5027-65 65 70 0.93
5028 Stainless Steel 1″ Socket

Socket 1″
• Material: 304 Stainless steel

Model S (mm) L (mm) Weight (kg)
5028-22 22 55 0.30
5028-23 23 55 0.32
5028-24 24 55 0.34
5028-25 25 55 0.36
5028-26 26 55 0.38
5028-27 27 55 0.40
5028-28 28 55 0.42
5028-30 30 60 0.46
5028-32 32 60 0.52
5028-34 34 60 0.55
5028-35 35 60 0.58
5028-36 36 60 0.62
5028-38 38 60 0.68
5028-40 40 60 0.72
5028-41 41 60 0.74
5028-42 42 60 0.80
5028-45 45 70 0.85
5028-46 46 70 0.88
5028-50 50 70 0.96
5028-55 55 70 1.05
5028-60 60 75 1.16
5028-65 65 75 1.25
5028-70 70 75 1.35
5028-75 75 80 1.45
5028-80 80 80 1.55
5028A Stainless Steel Hexagon Socket

Hexagon Socket
• Material: 304 Stainless steel

Model S (mm) L (mm) Weight (kg)
5028A-10 10 35 0.05
5028A-12 12 35 0.06
5028A-14 14 35 0.08
5028A-17 17 35 0.10
5028A-19 19 40 0.13
5028A-22 22 40 0.15
5028A-24 24 40 0.18
5028A-27 27 45 0.22
5028A-30 30 45 0.25
5029 Stainless Steel Universal Joint

Universal Joint
• Application: For the connection between each socket and wrench, and between the socket and extension bar, this product is a connecting accessory.
• Material: 304 Stainless steel

Model Size (mm) L (mm) Weight (kg)
5029-001 1/2″ 75 0.17
5029-002 3/4″ 110 0.50
5029-003 1″ 135 1.00
5030 Stainless Steel Socket Offset Handle

Offset Handle
• Application: Used for tightening and loosening valves and other accessories in places with narrow spaces and small heights.
• Material: 304 Stainless steel

Model Size (mm) L (mm) Weight (kg)
5030-001 1/2″ 280 0.80
5030-002 1/2″ 480 0.60
5030-003 3/4″ 450 1.20
5030-004 1″ 520 1.60
5031 Stainless Steel Turning Handle

Hinged Handle
• Application: For the connection between each socket and wrench, and between the socket and extension bar, this product is a connecting accessory.
• Material: 304 Stainless steel

Model Size (mm) L (mm) Weight (kg)
5031-001 1/2″ 400 0.80
5031-002 1/2″ 500 0.95
5031-003 3/4″ 500 1.35
5031-004 3/4″ 650 2.00
5031-005 1″ 550 2.00

Note: The description may be different with the product, please contact us for quotation.
Click here to contact us via whatsapp for details
