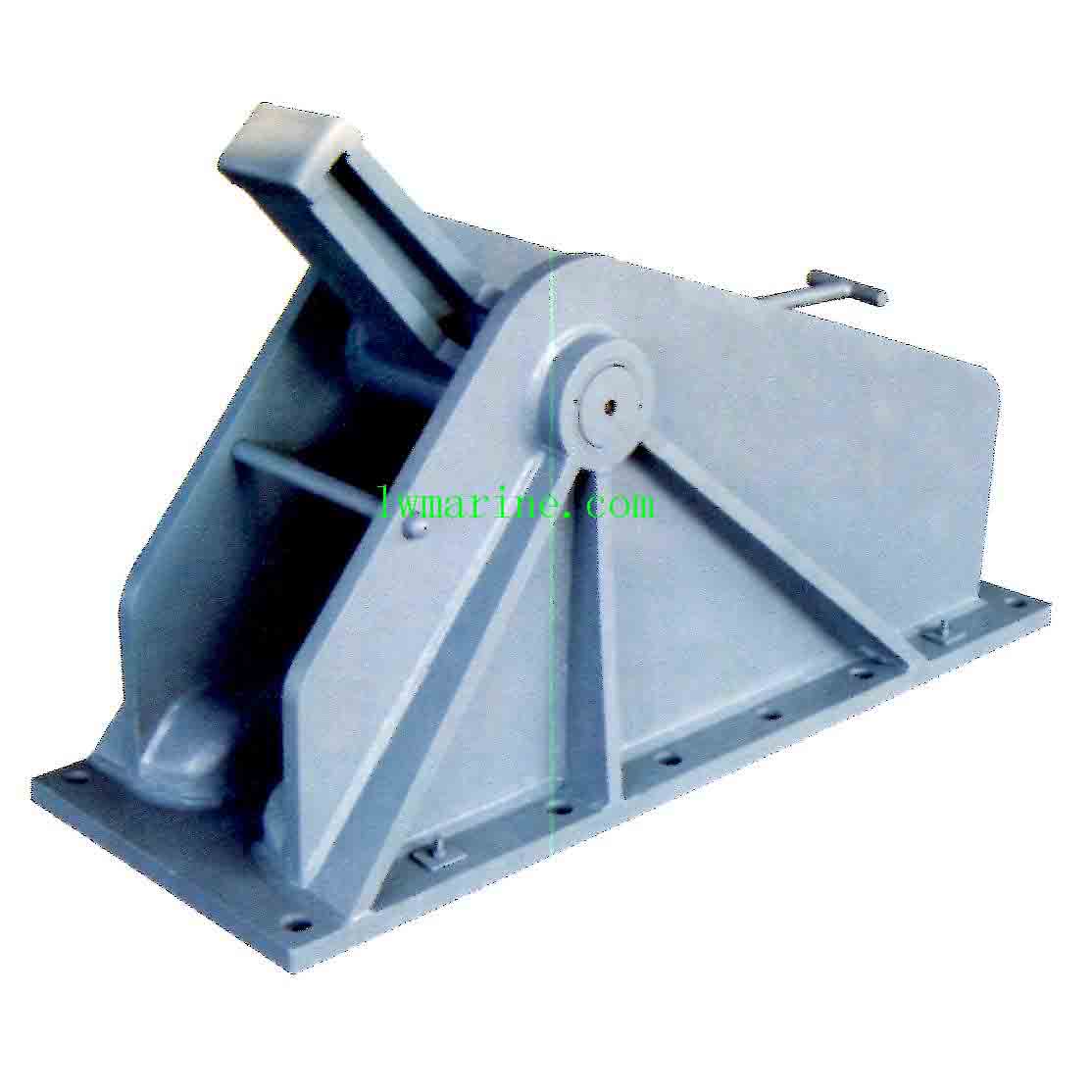

China OCIMF Type Single Point Mooring Chain Stopper – Certified Heavy-Duty Mooring Solution
Engineered to meet OCIMF (Oil Companies International Marine Forum) standards, our Single Point Mooring Chain Stopper delivers exceptional reliability for offshore mooring operations. Designed to withstand up to 80% of the chain cable’s breaking load, this robust stopper ensures secure vessel positioning in demanding marine environments. Each unit is manufactured using advanced equipment under strict quality control, with full mill certification provided for traceability and compliance.
The chain stopper comes standard with a grey epoxy primer, while intermediate and topcoat paints can be customized to meet your specific corrosion protection and color scheme requirements. We offer complete customization services to match unique project specifications and operational needs.
TECHNICAL SPECIFICATIONS
| Nominal Chain Dia (mm) | L (mm) | B (mm) | H (mm) | H1 (mm) | b4 (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 54-56 | 1336 | 474 | 631 | 481 | 400 | 488 |
| 76-78 | 1800 | 640 | 850 | 648 | 540 | 1421 |
KEY FEATURES & BENEFITS
-
OCIMF Compliant Design: Meets international standards for offshore mooring operations
-
High Load Capacity: Withstands 80% of chain cable breaking load for maximum safety
-
Custom Paint Systems: Grey epoxy primer standard, with customizable intermediate and top coats
-
Full Material Traceability: Mill certificates provided for quality assurance
-
Robust Construction: Heavy-duty design ensures long-term reliability in harsh marine environments
-
Quality Manufacturing: Advanced equipment and strict quality control processes
-
Customization Available: Tailored solutions for specific project requirements
The description/sizes may be different with goods, please check with us when order.
