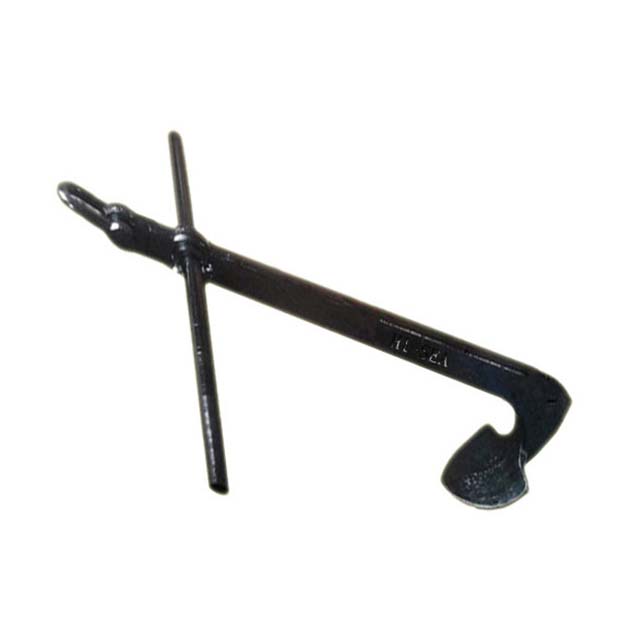

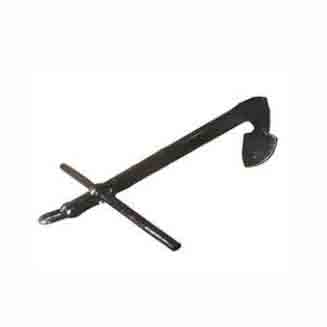

Single Fluke Anchor
Single Fluke Anchor
| Nominal weight(kg) | Size (mm) | |||||
|---|---|---|---|---|---|---|
| A | B | B1 | C | L | L1 | |
| 75 | 1090 | 385 | 190 | 305 | 545 | 600 |
| 100 | 1200 | 335 | 210 | 335 | 600 | 660 |
| 150 | 1375 | 380 | 240 | 380 | 685 | 755 |
| 200 | 1510 | 420 | 265 | 420 | 755 | 835 |
| 300 | 1895 | 480 | 300 | 480 | 865 | 955 |
| 400 | 1905 | 530 | 332 | 530 | 950 | 1050 |
| 500 | 2052 | 570 | 358 | 570 | 1020 | 1130 |
| 560 | 2152 | 600 | 375 | 600 | 1070 | 1190 |
| 700 | 2318 | 646 | 404 | 646 | 1150 | 1280 |
| 800 | 2428 | 680 | 422 | 680 | 1210 | 1340 |
| 1000 | 2615 | 730 | 455 | 730 | 1300 | 1440 |
| 1600 | 3008 | 840 | 530 | 840 | 1510 | 1660 |
| 1810 | 3137 | 880 | 550 | 880 | 1575 | 1730 |
| 2270 | 3379 | 940 | 595 | 940 | 1695 | 1865 |
| 2400 | 3455 | 960 | 600 | 960 | 1730 | 1900 |
| 3200 | 3808 | 1060 | 660 | 1060 | 1910 | 2100 |
| 4000 | 4102 | 1140 | 715 | 1140 | 2060 | 2260 |
| 4536 | 4278 | 1180 | 745 | 1180 | 2150 | 2360 |
| 4800 | 4366 | 1200 | 760 | 1200 | 2190 | 2400 |
| 5000 | 4420 | 1210 | 770 | 1210 | 2220 | 2430 |
| 5600 | 4590 | 1265 | 800 | 1265 | 2300 | 2530 |
| 6000 | 4697 | 1300 | 820 | 1300 | 2350 | 2590 |
| 6400 | 4789 | 1330 | 840 | 1330 | 2400 | 2640 |
| 7000 | 4943 | 1380 | 865 | 1380 | 2470 | 2720 |
| 7200 | 5000 | 1400 | 870 | 1400 | 2500 | 2750 |
| 8000 | 5143 | 1400 | 895 | 1430 | 2570 | 2830 |
| 8800 | 5247 | 1430 | 915 | 1460 | 2630 | 2890 |
| 9600 | 5324 | 1450 | 925 | 1480 | 2660 | 2930 |
| 10400 | 5352 | 1470 | 935 | 1490 | 2680 | 2950 |
| 11200 | 5390 | 1500 | 935 | 1500 | 2700 | 2970 |
| 12000 | 5428 | 1520 | 945 | 1510 | 2720 | 2990 |
| 12800 | 5446 | 1540 | 950 | 1520 | 2740 | 3010 |
| 13800 | 5475 | 1550 | 960 | 1530 | 2750 | 3030 |
| 14400 | 5513 | 1570 | 960 | 1540 | 2770 | 3050 |
| 15200 | 5551 | 1580 | 970 | 1550 | 2790 | 3070 |
Note: The description may be different with the product, please contact us for quotation.
