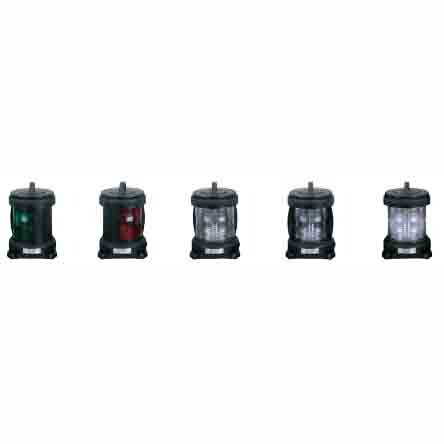

Single-Deck Navigation Signal Light
LED
Applied to the ships with the length 50M or above 50M as lamp signal liaison on when night navigation.
| CXH1-11P CXH1-11PL | CXH2-11P CXH2-11PL | CXH3-11P CXH3-11PL | CXH4-11P CXH4-11PL | CXH6-11P 370426 370428 CXH6-11PL | |
|---|---|---|---|---|---|
| The scope of application | Starboard light | Port light | Masthead light | Stern light | All-round light |
| Type | Conventional LED | Conventional LED | Conventional LED | Conventional LED | Conventional LED |
| Model | CXH1-11P CXH1-11PL | CXH2-11P CXH2-11PL | CXH3-11P CXH3-11PL | CXH4-11P CXH4-11PL | CXH6-11P 370426 370428 CXH6-11PL |
| Rated Voltage | 24/110/220V AC85-265V | 24/110/220V AC85-265V | 24/110/220V AC85-265V | 24/110/220V AC85-265V | 24/110/220V AC85-265V |
| Power | 60W/6W | 60W/6W | 60W/6W | 60W/6W | 60W/6W |
| Lampholder | P28S LED | P28S LED | P28S LED | P28S LED | P28S LED |
| Color | Green | Red | Clear Transparent | Clear Transparent | Red/Green (all-round light) Transparent |
| Light Arc | 112.5° | 112.5° | 225° | 135° | 360° (fixed) |
| Visibility | 3n.m | 3n.m | 6n.m | 3n.m | 3n.m |
| Protection Class | IP56 | IP56 | IP56 | IP56 | IP56 |
| Cable outside diameter | Φ10 – Φ12 | Φ10 – Φ12 | Φ10 – Φ12 | Φ10 – Φ12 | Φ10 – Φ12 |
| Installation | Seat type | Seat type | Seat type | Seat type | Seat type |
| Ambient temperature | -30℃～+55℃ | -30℃～+55℃ | -30℃～+55℃ | -30℃～+55℃ | -30℃～+55℃ |
| Housing material | The shell is made of high-strength engineering plastic PA+GF injection molding. The lens cover adopts high-quality stainless steel. | ||||
| Lampshade material | The lampshade adopts PC injection molding. | ||||
| Weight | 2.6KG | 3KG | 2.6KG | 3KG | 2.5KG 3KG 2.6KG 3KG 2.6KG 3KG |
Attention please: The description may be different with the product, please contact us for quotation.
