Single Arm Rescue Launching Appliance

Single Arm Rescue Boat Launching Appliance | SOLAS-Compliant Davit System for Lifeboats & Rescue Rafts

Product Overview:

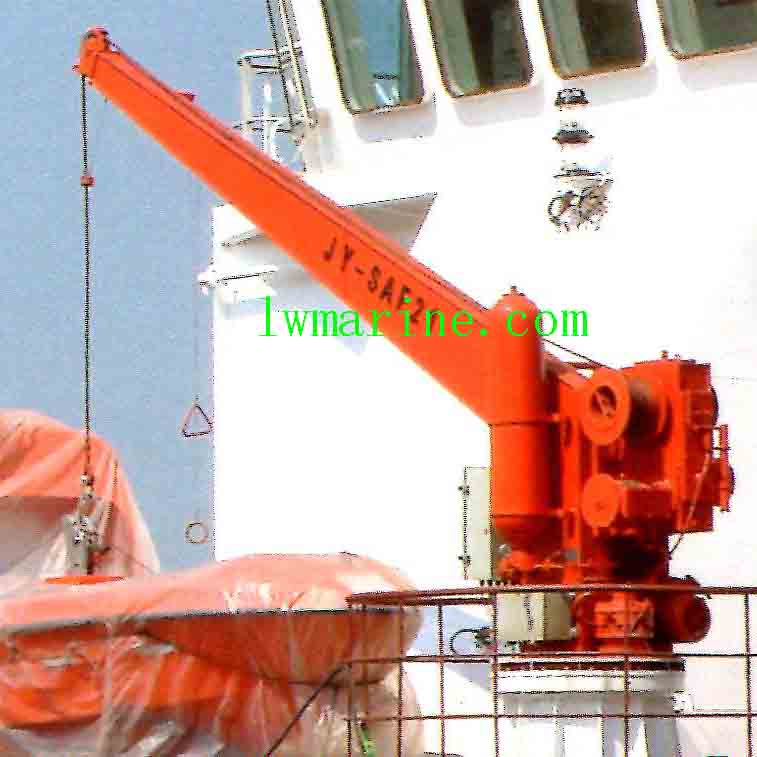

Our Single Arm Rescue Launching Appliance is a robust, gravity-assisted davit system engineered for the safe and efficient deployment and recovery of rescue boats and life rafts. This hydraulic slewing davit ensures reliable operation even during power failures, utilizing accumulator backup or manual pump drive. Designed for remote and manual control, it offers unparalleled safety and flexibility in maritime emergency operations, making it an essential safety system for all types of vessels.

Key Features & Benefits:

Gravity-Assisted Lowering: Ensures smooth and reliable descent of rescue boats/rafts using its own weight for enhanced safety.
Hydraulic Slewing Mechanism: Provides precise positioning with 360-degree rotation capability; operates via accumulator or manual pump during power loss.
Dual Control Options: Features remote control operation from inside the rescue craft via wired brake system, plus manual brake control on the deck for maximum flexibility.
High-Capacity Performance: Designed to handle significant working loads with optimized hoisting and landing speeds for rapid deployment.
Fail-Safe Design: Ensures continuous operation under emergency conditions with multiple backup systems.
Compact Rotation Radius: Space-efficient design suitable for various vessel configurations and deck layouts.

Technical Specifications:

Model Type	Max Safety Working Load	Hoisting Load	Hoisting Speed	Landing Speed	Rope Capacity	Rotation Radius	Max Rotation Angle
Standard	21 KN	14 KN	≥18 m/min	40-60 m/min	30 m	3600-4500 mm	≤330°
Heavy-Duty	23 KN	18 KN	≥18 m/min	40-60 m/min	30 m	3600-5400 mm	≤330°
Extended	23 KN	18 KN	≥18 m/min	40-60 m/min	30 m	3600-5000 mm	≤330°
