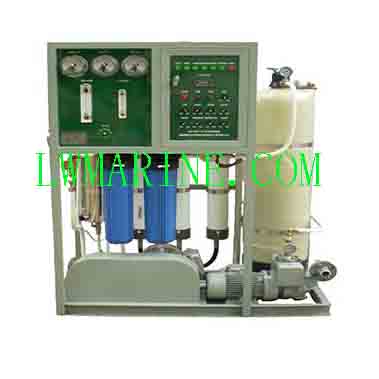

Ship Water Generator | Reverse Osmosis System for High-TDS Seawater
Our high-performance Ship Water Generator is engineered to efficiently process seawater with salinity levels up to 40,000 ppm, producing clean drinking water that complies with National Drinking Water Standards (TDS ≤ 600 ppm). Designed for reliability and ease of operation, the system integrates advanced pretreatment, reverse osmosis, and sterilization technologies to deliver consistent output even under challenging conditions.
Key Features & Technologies:
-
Robust Pre-Treatment System: Includes multi-media filtration and dual 5-micron PP filters to remove algae, suspended solids, and organic matter, significantly reducing SDI to protect downstream components.
-
High-Efficiency RO Membranes: Equipped with industry-leading USA DOW 4040 seawater reverse osmosis membranes, offering salt rejection rates ≥99.5%.
-
Durable High-Pressure Pump: Constructed with SS316L stainless steel for corrosion resistance and long-term reliability in marine environments.
-
Real-Time Monitoring: Features an online conductivity meter and water quality monitoring system to ensure consistent product water quality.
-
Semi-Automatic Cleaning & Backflush System: Includes compressed-air accelerated sand filter flushing and CIP chemical cleaning to maintain membrane performance and extend system life.
-
UV Sterilization: Post-treatment with a 14W American Hanovia UV sterilizer guarantees disinfected and safe drinking water.
Available Models & Output Options:
| Model | Daily Capacity | Inlet Salinity | Product Water TDS | Operating Pressure |
|---|---|---|---|---|
| YB-SWRO-5m³ | 5 m³/day | ≤ 40,000 mg/L | ≤ 700 mg/L | < 6.5 MPa |
| YB-SWRO-10m³ | 10 m³/day | ≤ 36,000 mg/L | ≤ 700 mg/L | < 6.5 MPa |
| HS-FSHB Series | 10–60 m³/day | ≤ 36,000 mg/L | ≤ 500–700 mg/L | < 6.5 MPa |
Operating Conditions:
-
Environment Temperature: 0–45°C
-
Seawater Temperature: 5–45°C
-
Relative Humidity: 20%–95%
-
Power Supply: 380V/50Hz/3-Phase (custom voltages available)
Optional Accessories:
Liquid level switches, pressure tanks, and additional monitoring instruments are available to tailor the system to specific project requirements.
The description/sizes may be different with goods, please check with us when order.
