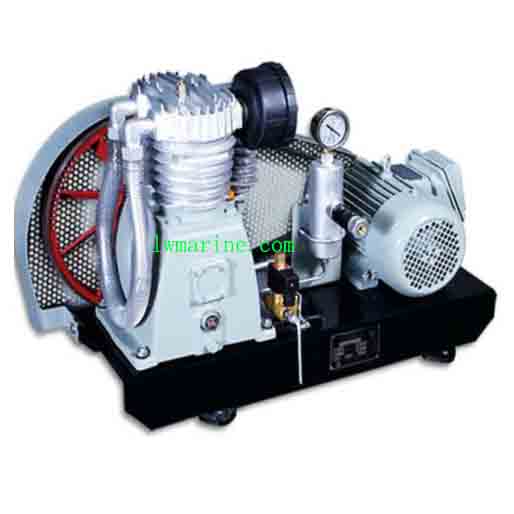

SHC-55A Ship Water Cooled Air Compressor – High-Performance Vertical Compressor
Reliable 3.0MPa Water-Cooled Solution for Marine Applications
The SHC-55A Ship Water Cooled Air Compressor is a vertical, two-stage compression system designed for demanding marine environments. With 42-60 m³/h capacity at 3.0 MPa pressure, this water-cooled compressor delivers exceptional cooling efficiency and stable performance for critical shipboard operations.
Key Features & Benefits
✔ Advanced Water Cooling System – Superior heat dissipation for continuous operation in tropical conditions
✔ Precision Pressure Control – Adjustable pump pressure maintains optimal performance
✔ Smart Automation – Optional fully automatic control system with:
-
Auto start/stop functions
-
Low oil pressure alarm
-
Over-temperature protection
-
Automatic unloading
✔ Vibration-Free Operation – Perfectly balanced design ensures smooth performance
✔ Marine-Grade Construction – Corrosion-resistant materials withstand saltwater exposure
Technical Specifications
| Model | Capacity (m³/h) | Pressure (MPa) | Speed (r/min) | Power (kW) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| SHC-55A | 42 | 3.0 | 730 | 11 | 1200×680×1050 | 310 |
| – | 50 | 3.0 | 870 | 15 | – | 330 |
| – | 60 | 3.0 | 960 | 15 | – | 330 |
The description/sizes may be different with goods, please check with us when order.
