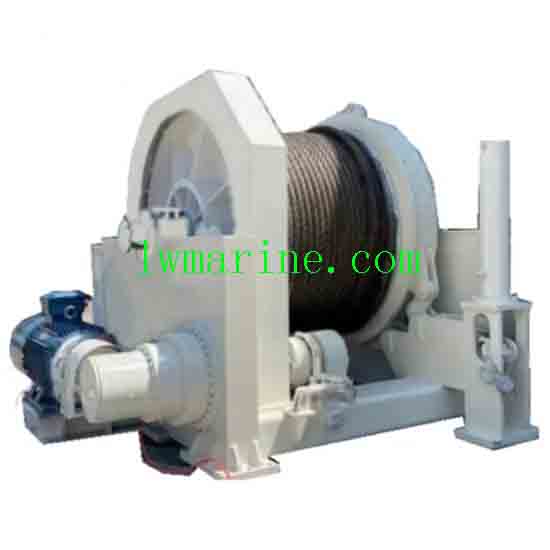

Ship Towing Winch – Heavy-Duty Towing Solution for Safe Vessel Operations
Professional-Grade Towing Performance
The Ship Towing Winch is engineered for reliable, high-capacity towing operations in commercial shipping, salvage, and offshore industries. Available in electric or hydraulic configurations, this robust winch system features emergency release functionality and specialized towing accessories to ensure safe, controlled vessel handling in all conditions.
Key Applications
✔ Harbor Tug Operations – Ship maneuvering & port assistance
✔ Offshore Salvage – Vessel recovery & wreck removal
✔ Barge Handling – Logistical towing in inland waterways
✔ Emergency Response – Firefighting & disaster mitigation
Critical Safety Feature
Emergency Quick-Release System – Instantly disconnects tow lines during:
-
Sinking incidents
-
Fire/explosion emergencies
-
Sudden load surges
Technical Specifications
Configuration Options
① Electric Towing Winch
-
Clean energy operation
-
Precise speed control
② Hydraulic Towing Winch
-
Higher torque output
-
Superior durability in harsh conditions
Core Components
✔ Heavy-Duty Drum – With automatic spooling device
✔ Towing Accessories – Shark jaws & towing pins (optional)
✔ Braking Systems – Manual or hydraulic (fail-safe design)
Performance Advantages
-
High Strength-to-Weight Ratio – Aluminum/steel composite construction
-
Marine-Grade Corrosion Resistance – 3x protective coating system
-
Precision Control – ±2% speed accuracy under load
-
Low Maintenance – Sealed bearings & easy-access components
Certifications & Compliance
✔ BV, RINA Certified
✔ SOLAS compliant safety systems
Parameters:
| Rope capacity | Rope diameter | Motor power | Rated load | Rated speed | Overall Dimensions |
| m | mm | KW | KN | m/min | mm |
| 500 | 28 | 45 | 160 | 7.5 | 3200x4050x2200 |
| 500 | 30 | 55 | 200 | 7.5 | 3200x4050x2200 |
| 550 | 32 | 75 | 250 | 7.5 | 3600x4350x2580 |
| 600 | 36 | 90 | 320 | 7.5 | 3600x4500x2600 |
| 750 | 40 | 90 | 400 | 5 | 3700x4800x2860 |
| 750 | 52 | 110 | 500 | 5 | 3900x4900x3000 |
| 850 | 54 | 110 | 630 | 5 | 4000x5100x3100 |
| 1000 | 58 | 132 | 800 | 5 | 4250x5300x3300 |
| 1000 | 64 | 180 | 1000 | 5 | 4550x5500x3450 |
The description/sizes may be different with goods, please check with us when order.
