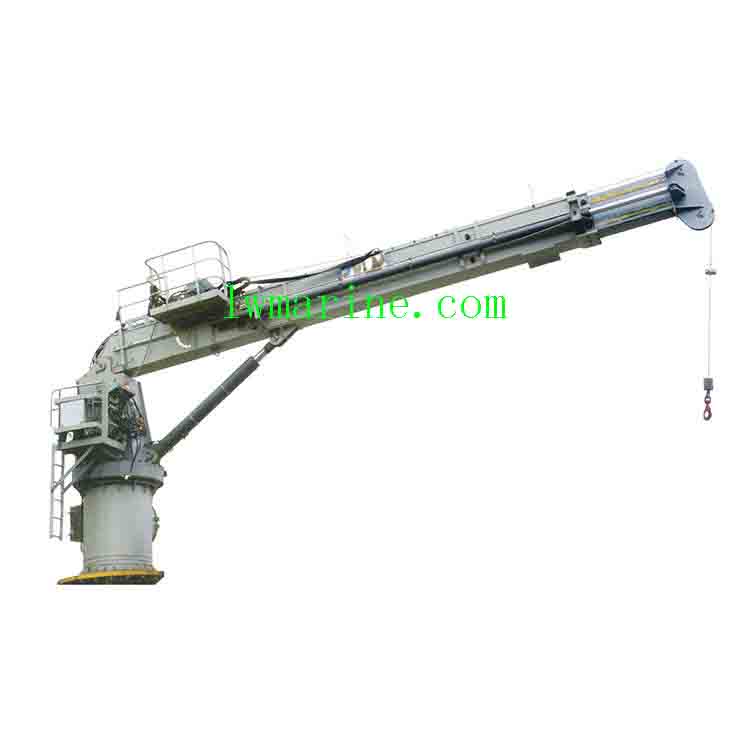

Ship Telescopic Boom Crane
The Ship Telescopic Boom Crane is a robust and versatile lifting solution designed to handle loads up to 10 tonnes with precision and ease. Featuring a hydraulically extendable boom, this crane offers adjustable reach from compact to extended positions, enabling accurate load positioning in a variety of challenging environments. It is particularly well-suited for demanding industrial applications such as:
- Construction Sites: Efficient material handling and equipment placement.
- Mining Operations: Heavy load maneuvering in confined spaces.
- Transportation Hubs: Loading and unloading of heavy cargo.
- Marine Applications: Shipboard cargo operations (marine-grade versions available).
Key Features:
- Telescoping Capability: Hydraulically adjustable boom for flexible reach.
- Precision Control: Accurate load placement facilitated by a reliable hydraulic system.
- Adaptable Design: Suitable for both stationary and mobile installations, offering versatility in setup.
- Material Options: Choose from aluminum (lightweight and durable, ideal for mobile applications), carbon steel (high strength for heavy-duty operations), or stainless steel (superior corrosion resistance for marine environments).
Advantages & Features:
- Compact Yet Strong: High strength-to-weight ratio design ensures durability without compromising on portability.
- Safety Assured: Robust construction with fail-safe mechanisms for enhanced operator safety.
- Quick Setup: Easy installation process minimizes downtime, allowing for rapid deployment.
- Long Service Life: Corrosion-resistant materials and coatings extend the crane’s operational lifespan.
- Power Options: Available with standard or ATEX-certified explosion-proof motors for hazardous environments.
- Energy Efficient: Optimized hydraulic system reduces power consumption, saving on operational costs.
- Space-Saving: Foldable design facilitates easy storage and transport, optimizing space utilization.
- Dual Protection: Automatic and manual overload systems provide comprehensive safety coverage.
- Custom Solutions: Tailored configurations available to meet specific project requirements.
- Certified Quality: Compliant with CCS, IRS, LR, and other international standards, ensuring top-notch quality.
Hydraulic Telescopic Crane Model Specifications:
| Model | SWL (T) | Hoist Speed (m/min) | Out-reach (m) | Luffing Time (sec) | Slewing Speed (r/min) | Power REQ. (KW) |
|---|---|---|---|---|---|---|
| HTC1/10 | 1 | 8~15 | 10 | 60~80 | 0.5 | 11 |
| HTC1/15 | 1 | 8~15 | 15 | 60~80 | 0.5 | 11 |
| HTC2/10 | 2 | 8~15 | 10 | 60~80 | 0.5 | 15 |
| HTC2/15 | 2 | 8~15 | 15 | 60~80 | 0.5 | 15 |
| HTC3/10 | 3 | 8~15 | 10 | 60~80 | 0.5 | 18.5 |
| HTC3/15 | 3 | 8~15 | 15 | 60~80 | 0.5 | 18.5 |
| HTC4/10 | 4 | 8~15 | 10 | 60~80 | 0.5 | 22 |
| HTC4/15 | 4 | 8~15 | 15 | 60~80 | 0.5 | 22 |
| HTC5/10 | 5 | 8~12 | 10 | 70~100 | 0.5 | 30 |
| HTC5/15 | 5 | 8~12 | 15 | 70~100 | 0.5 | 30 |
| HTC8/15 | 8 | 8~12 | 15 | 70~100 | 0.5 | 45 |
| HTC10/15 | 10 | 8~12 | 15 | 70~100 | 0.5 | 55 |
Note: The description might be incorrect, please contact us for confirmation.
