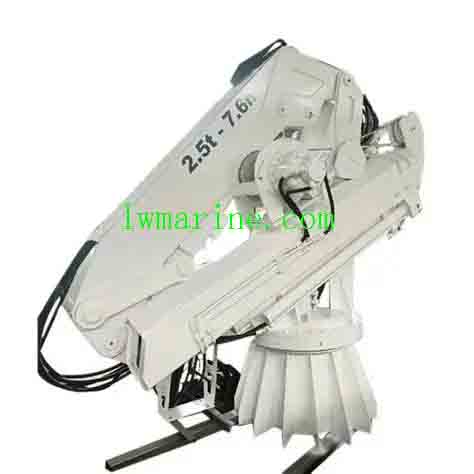

Electric Hydraulic Marine Telescopic Boom Crane
Our Electric Hydraulic Marine Telescopic Boom Crane is ingeniously designed with a compact construction that allows them to telescope, significantly reducing their overall size when stored. This feature minimizes the space they occupy on board, making them ideal for vessels where space optimization is crucial. These cranes can be equipped with either single or multiple telescopes, providing flexibility to meet various operational needs.
Key Features for Superior Functionality
- Self-Contained Unit with Integrated Power Pack: Ensures easy installation and operation without the need for external power sources.
- Simple Mounting: The pedestal can be securely mounted to the deck using welding or bolts, and the power cable can be easily connected, facilitating quick setup.
- No Electric Slip Ring: Eliminates the need for maintenance-intensive slip rings, enhancing reliability and reducing downtime.
- Fail-Safe Brakes on All Movements: Provide an additional layer of safety, ensuring the crane remains secure during operation.
- Welded Box Boom (Jib): Designed for low maintenance, ensuring long-term durability and cost-effectiveness.
- Maintenance-Free Jib- and Cylinder Bearings: Reduce the need for regular servicing, saving time and resources.
Standard Equipment for Comprehensive Solution
- Shot Blasted to SA2.5 Plus 2 Layers of Marine Paint: Ensures superior corrosion resistance, extending the crane’s lifespan in harsh marine environments.
- Pedestal Height Range: Between 1.1 and 1.5 meters, accommodating different vessel deck configurations.
- Class Certificate on Pedestal: Verifies compliance with international safety standards, providing peace of mind.
- Control Platform: Located on either the left or right-hand side of the crane, offering ergonomic and convenient operation.
- Full Documentation/Owner’s Manual: Provides detailed instructions and maintenance guidelines, ensuring proper use and upkeep.
- Customizable Working Radius and Lifting Capacity (SWL): Tailored to meet specific customer requirements, ensuring optimal performance.
Main Technical Specifications for Informed Decision-Making
| Type | Safety Load (kN) | Max Working Radius (m) | Min Working Radius (m) | Hoisting Speed (m/min) | Slewing Speed (r/min) | Luffing Time (s) | Slewing Angle (°) | Permission List/Trim (°) | Hoisting Height (m) | Power (kW) |
|---|---|---|---|---|---|---|---|---|---|---|
| YQ1 | 10 | 6~12 | 1.3~2.6 | 15 | 1 | 60 | 360 | 2°/5° | 30 | 7.5 |
| YQ1.5 | 15 | 8~14 | 1.7~3 | 15 | 1 | 60 | 360 | 2°/5° | 30 | 11 |
| YQ2 | 20 | 5~15 | 1.1~3.2 | 15 | 1 | 60 | 360 | 2°/5° | 30 | 15 |
| YQ3 | 30 | 8~18 | 1.7~3.8 | 15 | 0.9 | 70 | 360 | 2°/5° | 30 | 22 |
| YQ5 | 50 | 12~20 | 2.5~4.2 | 15 | 0.75 | 80 | 360 | 2°/5° | 30 | 37 |
| YQ8 | 80 | 12~20 | 2.5~4.2 | 15 | 0.75 | 100 | 360 | 2°/5° | 30 | 55 |
| YQ10 | 100 | 12~20 | 2.5~4.2 | 15 | 0.75 | 110 | 360 | 2°/5° | 30 | 75 |
| YQ15 | 150 | 12~20 | 2.5~4.2 | 15 | 0.6 | 110 | 360 | 2°/5° | 30 | 90 |
| YQ20 | 200 | 16~25 | 3.2~5.3 | 15 | 0.6 | 120 | 360 | 2°/5° | 35 | 75*2 |
| YQ25 | 250 | 20~30 | 3.2~6.3 | 15 | 0.5 | 130 | 360 | 2°/5° | 40 | 90*2 |
| YQ30 | 300 | 30 | 3.2~6.3 | 15 | 0.4 | 140 | 360 | 2°/5° | 40 | 90*2 |
| YQ35 | 350 | 20~35 | 4.2~7.4 | 15 | 0.5 | 150 | 360 | 2°/5° | 45 | 110*2 |
| YQ40 | 400 | 20~35 | 4.2~7.4 | 15 | 0.5 | 150 | 360 | 2°/5° | 45 | 140*2 |
| YQ45 | 450 | 25~40 | 5.3~8.5 | 15 | 0.45 | 160 | 360 | 2°/5° | 50 | 140*2 |
| YQ50 | 500 | 25~40 | 5.3~8.5 | 15 | 0.45 | 170 | 360 | 2°/5° | 50 | 165*2 |
Frequently Asked Questions (FAQs)
Q1: What makes the Electric Hydraulic Marine Telescopic Boom Crane suitable for maritime applications?
A1: The crane’s compact construction, telescoping capability, and corrosion-resistant design make it ideal for maritime applications where space optimization and durability are crucial.
Q2: Can the crane be customized to meet specific operational requirements?
A2: Yes, the working radius and lifting capacity (SWL) can be customized according to customer requests, ensuring optimal performance for various tasks.
Q3: What safety features are included in the crane’s design?
A3: The crane is equipped with fail-safe brakes on all movements, ensuring secure operation. Additionally, the welded box boom (jib) and maintenance-free bearings contribute to long-term reliability and safety.
Q4: How easy is it to install and operate the crane?
A4: The crane features a self-contained unit with an integrated power pack, making installation straightforward. The simple mounting process and user-friendly control platform ensure easy operation.
Q5: What certifications does the crane hold to ensure compliance with safety standards?
A5: The pedestal of the crane comes with a class certificate, verifying its compliance with international safety standards, providing peace of mind for users.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
