Ship Mooring Capstan – Professional Deck Machinery Solution
Comprehensive Mooring System for Vessels of All Sizes

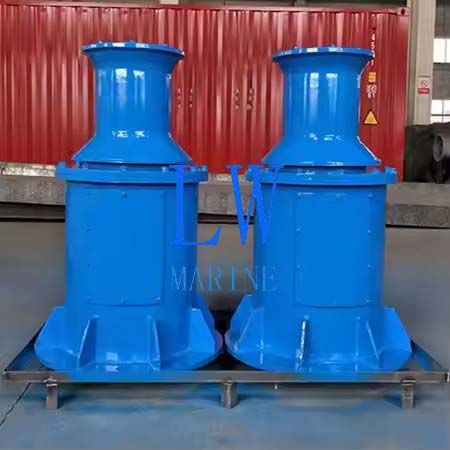

The Ship Mooring Capstan is a versatile deck equipment system designed for secure vessel mooring and anchoring operations. Available in electric and hydraulic configurations with vertical or horizontal orientation, this capstan delivers exceptional performance tailored to specific marine applications.
Technical Specifications
Configuration Options
| Type | Electric Capstan | Hydraulic Capstan |
|---|---|---|
| Power Source | Ship’s electrical system | Independent hydraulic power |
| Speed Control | Fixed speeds (1/2/3) | Stepless adjustment |
| Max Capacity | Up to 50 kN | Up to 300 kN |
| Best For | Smaller vessels | Heavy-duty operations |
Orientation Options
| Type | Vertical Capstan | Horizontal Capstan |
|---|---|---|
| Installation | Deck-penetrating | Full above-deck |
| Line Access | 360° operation | Directional |
| Space Needed | Compact footprint | Larger base |
Core Components
✔ High-Grade Materials:
-
Cast steel structural frame
-
316L stainless steel contact surfaces
-
Marine-grade corrosion protection
✔ Drive Systems:
-
Electric motors (5-50 kW)
-
Hydraulic motors (10-75 kW)
-
Precision gearboxes
✔ Control Options:
-
Local waterproof panels
-
Wireless remote (100m range)
-
Bridge integration available
Performance Data
| Parameter | Electric Model | Hydraulic Model |
|---|---|---|
| Capacity Range | 10-50 kN | 20-300 kN |
| Line Speed | 5-15 m/min | 0-20 m/min |
| Rope Diameter | 12-32 mm | 16-64 mm |
| Chain Size | 10-22 mm | 14-120 mm |
Certifications & Compliance
✔ BV, LR, RINA Certified
✔ SOLAS Safety Compliant
Parameters:
| Mooring Speed | Wire Dia.(mm) | Working Load(KN) | Motor power (kw) | |
| (m/min) | Electric | Hydraulic | ||
| ≥18 | φ11 | 5 | 3/1.2 | 5.5 |
| ≥18 | φ11 | 10 | 4.3/1.7 | 7.5 |
| ≥18 | φ13 | 15 | 8.5/3.5 | 11 |
| ≥18 | φ15 | 20 | 11/11/7.5 | 15 |
| ≥18 | φ17.5 | 30 | 16/16/11 | 18.5 |
| ≥18 | φ20.5 | 50 | 16/16/11 | 30 |
| ≥15 | φ26 | 70 | 22/22/11 | 45 |
| ≥15 | φ28 | 100 | 45/45/30 | 55 |
| ≥15 | φ32.5 | 120 | 60/60/45 | 75 |
| ≥15 | φ36.5 | 150 | 60/60/45 | 90 |
| ≥15 | φ40 | 200 | 75/75/36 | 110 |
| ≥12 | φ46 | 250 | 75/75/36 | 110 |
The description/sizes may be different with goods, please check with us when order.
