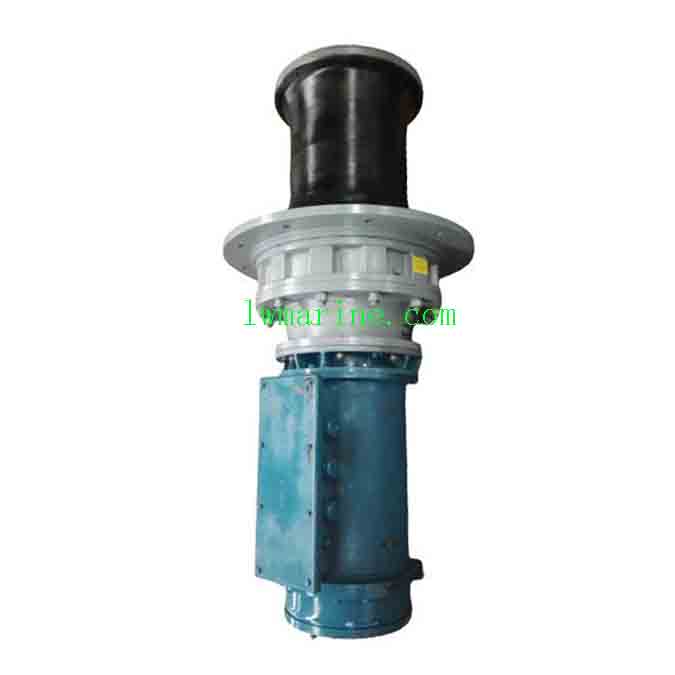

Marine Electric Hydraulic Mooring Vertical Capstan
Our company offers a comprehensive range of marine electric mooring hydraulic vertical capstan, available in both horizontal and vertical installation configurations. These capstans boast a wide line pull range, extending up to an impressive 200KN, ensuring they can meet the diverse needs of various marine applications. We also provide tailored solutions to our customers, ensuring that each capstan is perfectly suited to their specific requirements.
The Marine Electric Mooring Capstan is engineered with precision, incorporating essential components such as valve blocks with brake and overload protection functions, hydraulic motors, planetary gearboxes, wet-type brakes, capstan heads, and frames. The integration of a valve block simplifies the design of the Hydraulic Power Unit (HPU), enhancing the reliability of the drives and ensuring smooth operation.
Our marine vertical winch stands out with its high startup and working efficiency, delivering powerful performance while maintaining low noise levels and a compact design. This makes it an ideal choice for ship and deck machinery, where space is often limited, and efficiency is paramount.
Our electric hydraulic vertical capstans have gained widespread popularity in the domestic market and have also been successfully exported to various countries, including Southeast Asia, Korea, Maldives, Holland, New Zealand, and Australia. Our capstans are recognized for their quality and reliability, meeting the stringent requirements of the maritime industry.
Certifications and Compliance
Our Marine Electric Mooring Capstan is supplied with certifications from reputable organizations such as CCS, ABS, DNV, BV, RINA, and BKI, ensuring compliance with international standards and regulations. This provides our customers with peace of mind, knowing that they are investing in a product that meets the highest quality and safety standards.
Technical Specifications
Below are the detailed technical specifications for our range of marine electric hydraulic vertical capstans:
| Type | Rated Pull (kN) | Rated Speed (m/min) – Electric | Rated Speed (m/min) – Hydraulic | Steel Wire Rope Dia. (mm) | Motor Power (kW) – Electric | Motor Power (kW) – Hydraulic |
|---|---|---|---|---|---|---|
| MKD-5 | 5 | ≥15 | ≥18 | ȼ8 | 0.85/1.5 | 3 |
| MKD-10 | 10 | ≥15 | ≥18 | ȼ11 | 2.2/3.3 | 5.5 |
| MKD-15 | 15 | ≥15 | ≥18 | ȼ13 | 3/4.5 | 7.5 |
| MKD-20 | 20 | ≥15 | ≥18 | ȼ14 | 5/7.5 | 11 |
| MKD-30 | 30 | ≥15 | ≥18 | ȼ16 | 11/11/7.5 | 18.5 |
| MKD-50 | 50 | ≥15 | ≥18 | ȼ20.5 | 16/16/11 | 30 |
| MKD-80 | 80 | ≥15 | ≥15 | ȼ26 | 30/30/32 | 45 |
| MKD-100 | 100 | ≥12 | ≥12 | ȼ28 | 30/30/32 | 45 |
| MKD-125 | 125 | ≥12 | ≥12 | ȼ32 | 45/45/30 | 55 |
| MKD-160 | 160 | ≥10 | ≥10 | ȼ36 | 45/45/30 | 55 |
| MKD-200 | 200 | ≥10 | ≥10 | ȼ40 | 60/60/45 | 75 |
FAQs
Q1: What makes our marine electric hydraulic vertical capstans suitable for ship and deck machinery?
A1: Our capstans are designed with high startup and working efficiency, powerful performance, low noise levels, and a compact design, making them ideal for the limited space and demanding conditions of ship and deck machinery.
Q2: Can we provide customized solutions for marine electric hydraulic vertical Mooring capstan?
A2: Yes, we offer tailored solutions to meet the specific requirements of our customers, ensuring that each capstan is perfectly suited to their application.
Q3: What certifications do our marine electric hydraulic vertical mooring capstan come with?
A3: Our capstans are supplied with certifications from reputable organizations such as CCS, ABS, DNV, BV, RINA, and BKI, ensuring compliance with international standards and regulations.
Q4: What is the maximum line pull range available for our marine electric hydraulic vertical capstans?
A4: Our capstans offer a wide line pull range, extending up to 200KN, ensuring they can meet the diverse needs of various marine applications.
