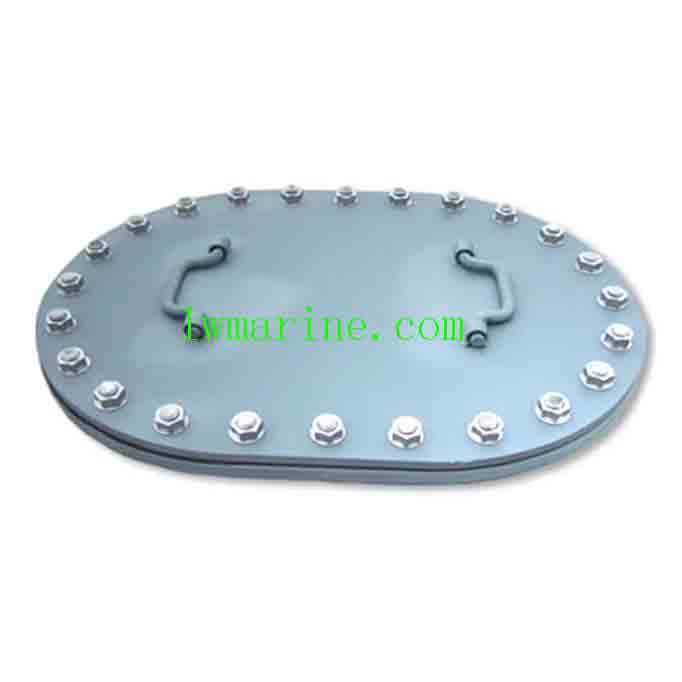

SHIP MANHOLE COVER

SHIP MANHOLE COVER

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

Category:
SHIP MANHOLE COVER

GB/T 43383-2023

USED FOR THE WATERTIGHT AND OILTIGHT MANHOLE COVERS, COMPLY WITH IOS 5894

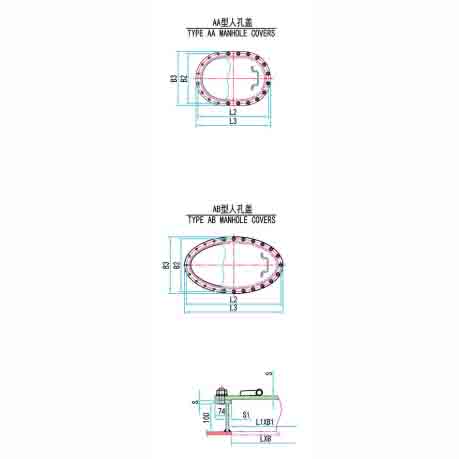

TYPE AA MANHOLE COVERS
TYPE AB MANHOLE COVERS
TYPE NOMINAL SIZE LXB L1 B1 L2 B2 L3 B3 S S1 FASTENER DIA. QTY. OUT WEIGHT KG
AA 450X350 470 370 548 448 598 498 4 4 M20 18 17.4
6 4 23.1
8 6 31.0
10 8 38.6
12 10 46.4
500X400 520 420 598 498 648 548 6 4 M20 18 26.4
8 6 35.4
10 8 44.5
12 10 53.6
14 12 62.7
600X400 620 420 698 498 748 548 8 6 M20 20 41.2
10 8 51.8
12 10 62.4
14 12 72.9
16 14 83.5
600X450 620 470 698 548 748 598 8 6 M20 22 43.9
10 8 55.0
12 10 66.2
14 12 77.4
16 14 88.7
18 16 99.0
800X600 820 620 898 698 948 748 12 10 M24 26 98.9
14 12 115.7
16 14 132.4
18 16 149.2
20 18 166.0
22 20 182.9
24 22 199.7
AB 800X400 820 420 898 498 948 548 12 10 M20 24 80.4
14 12 94.0
16 14 107.6
18 16 121.2
20 18 134.9
22 20 148.6
24 22 162.2
TYPE BA MANHOLE COVERS
TYPE BB MANHOLE COVERS
TYPE BC MANHOLE COVERS
TYPE NOMINAL SIZE LXB L1 B1 L2 B2 L3 B3 S S1 FASTENER DIA. QTY. OUT WEIGHT KG
BA 450X350 470 370 530 430 590 490 4 4 M20 16 23.8
6 4 27.6
8 6 31.3
10 8 35.0
12 10 38.6
500X400 520 420 580 480 640 540 6 4 M20 18 31.2
8 6 35.6
10 8 40.1
12 10 44.5
14 12 49.0
600X400 620 420 680 580 740 540 8 6 M20 20 41.1
10 8 46.4
12 10 51.7
14 12 57.0
16 14 62.3
600X450 620 470 680 530 740 590 8 6 M20 22 43.4
10 8 49.1
12 10 54.7
14 12 60.4
16 14 66.1
18 16 71.8
800X600 820 620 880 680 940 748 12 10 M24 26 80.8
14 12 89.9
16 14 99.0
18 16 108.1
20 18 117.2
22 20 126.2
24 22 135.3
BB 800X400 820 420 880 480 940 540 12 10 M20 26 63.1
14 12 69.6
16 14 76.0
18 16 82.4
20 18 88.9
22 20 95.3
24 22 101.8
BC 600X600 620 620 680 680 740 740 10 8 M20 28 67.1
12 10 75.3
14 12 83.5
16 14 91.7
18 16 99.9
20 18 108.1
22 20 116.3
24 22 124.5
TYPE BD MANHOLE COVERS
TYPE CA MANHOLE COVERS
TYPE CB MANHOLE COVERS
TYPE NOMINAL SIZE D D1 D2 D3 S S1 FASTENER DIA. QTY. OUT WEIGHT KG
BD Φ450 Φ470 Φ530 Φ590 6 4 M20 18 30.3
8 6 34.6
10 8 38.9
12 10 43.2
14 12 47.5
Φ600 Φ620 Φ680 Φ740 10 8 M20 22 56.0
12 10 62.8
14 12 69.5
16 14 76.3
18 16 83.0
20 18 89.8
22 20 96.5
TYPE NOMINAL SIZE LXB L1 B1 L2 B2 L3 B3 S S1 FASTENER DIA. QTY. OUT WEIGHT KG
CA 450X350 570 470 510 410 642 542 4 4 M20 16 47.0
6 4 58.4
8 6 69.6
10 8 80.9
600X400 720 520 660 460 792 592 8 6 M20 20 91.2
10 8 106.3
12 10 113.4
14 12 120.4
16 14 127.3
600X450 720 570 660 510 792 642 8 6 M20 20 94.9
10 8 110.9
12 10 118.3
14 12 125.7
16 14 133.1
18 16 140.5
800X600 920 720 860 660 992 792 12 10 M24 26 170.6
14 12 181.9
16 14 193.2
18 16 204.5
20 18 215.8
22 20 227.2
24 22 238.5
CB 800X400 920 520 860 460 992 592 12 10 M20 22 121.5
14 12 129.9
16 14 138.3
18 16 146.7
20 18 155.1
22 20 163.5
24 22 171.9
TYPE CC MANHOLE COVERS
TYPE CD MANHOLE COVERS
TYPE NOMINAL SIZE LXB L1 B1 L2 B2 L3 B3 S S1 FASTENER DIA. QTY. OUT WEIGHT KG
CC 450X350 560 460 510 410 602 502 4 4 M20 16 38.9
6 4 47.0
8 6 55.0
10 8 63.1
600X400 710 510 660 460 752 552 8 6 M20 20 72.8
10 8 84.2
12 10 90.7
14 12 97.3
16 14 103.8
600X450 710 560 660 510 752 602 8 6 M20 20 76.7
10 8 88.9
12 10 95.9
14 12 102.8
16 14 109.8
18 16 116.8
800X600 910 710 860 660 952 752 12 10 M24 26 142.3
14 12 153.1
16 14 163.9
18 16 174.6
20 18 185.4
22 20 196.2
24 22 207.0
CD 800X400 910 510 860 460 952 552 12 10 M20 22 105.5
14 12 113.2
16 14 120.8
18 16 128.5
20 18 136.2
22 20 143.9
24 22 151.5
TYPE DA MANHOLE COVERS
TYPE DB MANHOLE COVERS
TYPE NOMINAL SIZE LXB L1 B1 L2 B2 L3 B3 S S1 FASTENER DIA. QTY. OUT WEIGHT KG
DA 450X350 570 470 520 420 622 522 4 4 M20 16 27.8
6 4 32.9
8 6 38.0
10 8 43.2
600X400 720 520 670 470 772 572 8 6 M20 20 49.1
10 8 56.1
12 10 63.2
14 12 70.2
16 14 77.2
600X450 720 570 670 520 772 622 8 6 M20 20 51.4
10 8 58.9
12 10 66.3
14 12 73.8
16 14 81.3
18 16 88.8
800X600 920 720 870 670 972 772 12 10 M24 26 95.5
14 12 106.9
16 14 118.3
18 16 129.7
20 18 141.1
22 20 152.5
24 22 163.9
DB 800X400 920 520 870 470 972 570 12 10 M20 22 75.0
14 12 83.6
16 14 92.2
18 16 100.8
20 18 109.4
22 20 118.0
24 22 126.5
TYPE EA MANHOLE COVERS
TYPE EB MANHOLE COVERS
TYPE NOMINAL SIZE LXB L1 B1 L2 B2 L3 B3 S S1 H FASTENER DIA. QTY. OUT WEIGHT KG
EA 450X350 470 370 548 448 598 598 4 4 343 M20 18 20.4
6 4 26.1
8 6 34.0
10 8 41.6
500X400 520 420 598 498 648 648 6 4 376 M20 18 29.4
8 6 38.4
10 8 47.5
12 10 56.6
14 12 65.7
600X400 620 420 698 498 748 748 8 6 292 M20 20 44.2
10 8 54.8
12 10 65.4
14 12 75.9
16 14 86.5
600X450 620 470 698 548 748 748 8 6 362 M20 22 46.9
10 8 58.0
12 10 69.2
14 12 80.4
16 14 91.7
18 16 102.9
800X600 820 620 898 698 948 948 12 10 394 M24 26 101.9
14 12 118.7
16 14 135.4
18 16 152.2
20 18 169.0
22 20 185.9
24 22 202.7
EB 800X400 820 420 898 498 948 548 12 10 460 M20 24 83.4
14 12 97.0
16 14 110.6
18 16 124.2
20 18 137.9
22 20 151.5
24 22 165.2

Note: The description may be different with the product, please contact us for quotation.
