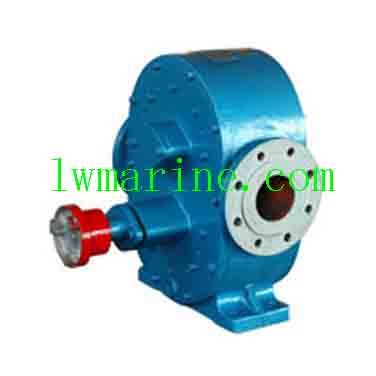

YCB-G Ship Heat Insulating Gear Pump
The YCB-G model ship heat insulating gear pump is a versatile and reliable solution designed for transferring a wide range of media, including heavy oil, asphalt, resin, detergent, and glue. This pump is specifically engineered to handle fluids without solid particles and with temperatures not exceeding 300℃, which may solidify at normal temperatures. It is ideal for applications requiring heat insulation, both in process technology and outdoor installations in extremely cold regions. The YCB-G pump ensures efficient and stable fluid transfer, even in challenging environmental conditions.
Key Features:
- External Gear Pump Design: The YCB-G belongs to the external gear pump category, featuring a tooth form that is a composite of arc and sine curves. This design enables the pump to handle various media with consistent output flow and pressure.
- Heat Insulation Capability: Equipped with a heat insulating jacket and inlet/outlet joints on the pump casing, the YCB-G can utilize media such as heat-conducting oil, steam, hot water, and cold water to heat, insulate, or cool the transferred fluid and pump itself.
- High-Temperature Resistance: The pump can withstand temperatures up to 300℃, making it suitable for handling high-temperature fluids without compromising performance.
- Adjustable Speed: When the viscosity of the transferred medium exceeds 1500cst, the pump’s speed can be reduced to ensure optimal operation and prevent damage.
Model Explanation & Performance Parameters:
Below are the detailed specifications for various models within the YCB-G Ship Heat Insulating Gear Pump range:
| Model | Inside Diameter (mm) | Capacity (m³/h) | Differential Pressure (Mpa) | Speed (r/min) | Motor Power (kw) |
|---|---|---|---|---|---|
| YCB0.6-0.6G | φ25 | 0.6 | 0.6 | 910 | 0.75 |
| YCB1.6-0.6G | φ32 | 1.6 | 0.6 | 910 | 0.75 |
| YCB3.3-0.6G | φ40 | 3.3 | 0.6 | 940 | 1.5 |
| YCB4-0.6G | φ50 | 4 | 0.6 | 940 | 1.5 |
| YCB8-0.6G | φ65 | 8 | 0.6 | 960 | 3 |
| YCB10-0.6G | φ65 | 10 | 0.6 | 970 | 4 |
| YCB20-0.6G | φ80 | 20 | 0.6 | 970 | 7.5 |
| YCB25-0.6G | φ80 | 25 | 0.6 | 970 | 11 |
| YCB30-0.6G | φ100 | 30 | 0.6 | 970 | 11 |
| YCB40-0.6G | φ125 | 40 | 0.6 | 970 | 15 |
| YCB50-0.6G | φ125 | 50 | 0.6 | 970 | 22 |
Frequently Asked Questions (FAQs):
Q1: What types of media can the YCB-G Ship Heat Insulating Gear Pump transfer?
A1: The YCB-G pump is designed to transfer various media, including heavy oil, asphalt, resin, detergent, and glue, provided they do not contain solid particles and have temperatures not exceeding 300℃.
Q2: How does the heat insulation feature of the YCB-G pump work?
A2: The pump is equipped with a heat insulating jacket and inlet/outlet joints that allow the use of heat-conducting oil, steam, hot water, or cold water to regulate the temperature of the transferred fluid and the pump itself, ensuring optimal performance in varying conditions.
Q3: Can the YCB-G pump be used in extremely cold outdoor environments?
A3: Yes, the YCB-G pump is suitable for outdoor installations in extremely cold regions, thanks to its heat insulation capability, which prevents the fluid from solidifying and ensures continuous operation.
Q4: What should I do if the viscosity of the transferred medium is high?
A4: If the viscosity of the transferred medium exceeds 1500cst, it is recommended to reduce the pump’s speed to ensure smooth and efficient operation without causing damage to the pump.
Q5: Is the YCB-G pump suitable for high-temperature applications?
A5: Absolutely, the YCB-G pump can withstand temperatures up to 300℃, making it an ideal choice for high-temperature fluid transfer applications in various industries.
Please Note: The description might be incorrect, please contact us for confirmation.
