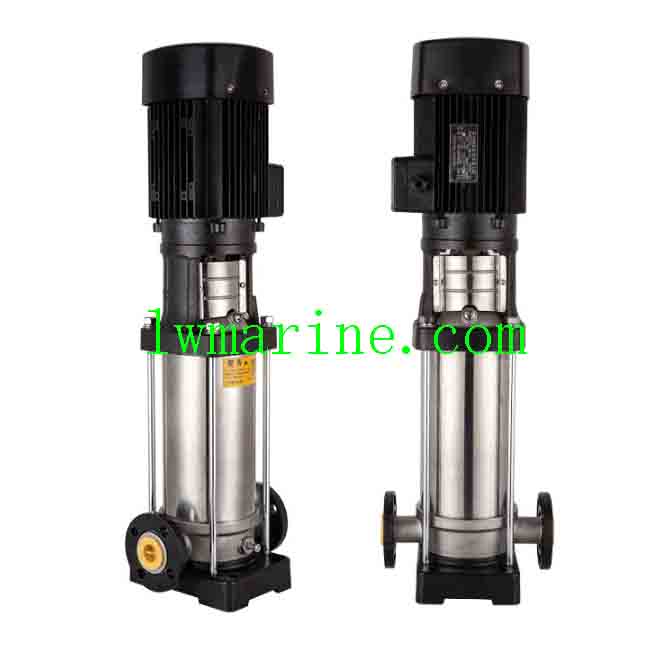

TPY Series Marine-Grade Stainless Steel Vertical Multistage Centrifugal Pump
The TPY Series Marine-Grade Stainless Steel Vertical Multistage Centrifugal Pump stands out as a top-tier performer in rigorous marine and industrial fluid handling scenarios. Constructed entirely from premium 304/316L stainless steel, these vertical multistage pumps exhibit outstanding resistance to corrosion, making them perfect for pumping water, softened water, swimming pool water, and slightly alkaline solutions across a broad temperature spectrum from -40°C to +120°C. Tailored for noiseless operation, compact fitting, and extended operational lifespan, the TPY series is an excellent choice for marine water supply networks, distilled water circulation systems, pressure enhancement, and industrial liquid transfer tasks.
Model Identification: TPY2-69
TPY: Denotes a stainless steel vertical multistage centrifugal pump
2: Represents a flow capacity of 2 cubic meters per hour (m³/h)
69: Indicates a total head of 69 meters
Technical Specifications & Operational Scope
Flow Capacity: Ranges from 1 to 200 m³/h (expandable up to 240 m³/h)
Maximum Pressure: Varies from 16 to 26 bar
Motor Power: Spans from 0.37 to 110 kW
Temperature Range: Functions effectively from -40°C to +120°C
Connection Varieties: Includes flange, pipe thread, and sleeve face connection options
Efficiency Rating: Achieves up to a maximum of 79% efficiency
Performance Data Overview
| Model | Capacity (m³/h) | Max Pressure (bar) | Motor Power (kW) | Efficiency (%) |
|---|---|---|---|---|
| TPY1 | 0.6–2.0 | 22 | 0.37–1.5 | 48 |
| TPY8 | 5–12 | 21 | 1.1–7.5 | 63 |
| TPY20 | 10–28 | 23 | 1.1–18.5 | 69 |
| TPY64 | 30–80 | 20 | 4–45 | 76 |
| TPY200 | 100–240 | 16 | 18.5–110 | 79 |
Superior Features & Advantages
Complete Stainless Steel Build: Utilizes 304/316L materials for unparalleled corrosion protection
Broad Temperature Adaptability: Operates efficiently from -40°C to +120°C
Space-Efficient Vertical Configuration: Compact design for straightforward installation in tight spaces
Noiseless Performance: Advanced hydraulic engineering ensures low-noise operation
Multistage Efficiency: Delivers high-pressure capabilities while conserving energy
Marine-Specific Durability: Designed to withstand harsh saltwater conditions
Versatile Connection Choices: Offers flange, threaded, and sleeve face connection compatibility
Extended Service Life: Robust construction minimizes maintenance needs and enhances longevity
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
