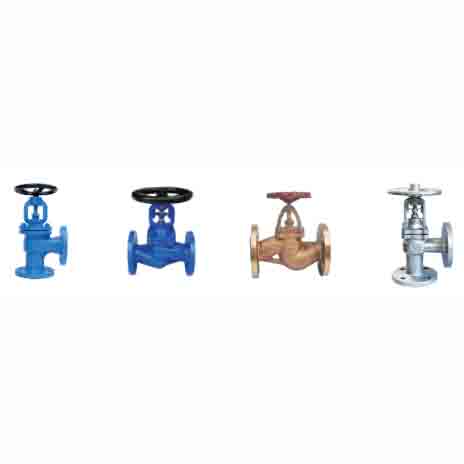

Ship DIN Globe SDNR Valve – ON&OFF/Regulating disc/with Bellow
| Part | Type and Standard | Material Combinations |
|---|---|---|
| Body | EN-GJS-400-18-LT, 5.3103(ex.JS1025); CuSn5Zn5Pb5-c, CC491K; GP240GH, 1.0619; GX5CrNiMo19-11-2, 1.4408 | Various materials as per type |
| Seat ring | X20Cr13, 1.4021; CuSn5Zn5Pb5-c, CC491K; etc. | Corresponding to body materials |
| Bonnet | Same as body material standards | Same as body materials |
| Disc | X20Cr13 + QT, 1.4021 / DIN1693 GGG40; CuSn5Zn5Pb5-c, CC491K / DIN1693 GGG40; DIN 17660 CuZn40Pb2; CuSn35Ni, etc. | Multiple material options |
| Stem | X20Cr13, 1.4021 | Stainless steel variants |
| Handwheel | DIN 1691 GG25 | Cast iron |
| Gland packing | Graphite; PTFE; SS304+GRAPHITE; SS316+GRAPHITE | Different packing materials |
| Gasket | Graphite; Aramid fiber | As specified |
| Max. temperature | 350°C; 225°C; 400°C | Varies by material |
Main Features:
- The sealing surface on disc is stainless steel, stellite alloy, babbit alloy, bronze alloy.
- Disc type: one type, regulating type, with soft sealing type, balance disc type.
- Bonnet with back seat.
- Packing available in a variety of materials: flexible graphite, PTFE, PPL, fugitive packing.
- Small torque, light switch.
- IACS Class Foundry Approval Available.
- Connection: flanged, welded, threaded.
Applications:
- Pipes: Hot oil system, Steam system, Hot and cold water system
- Industries: Shipbuilding industry, Chemical industry, Heating
- Medium: Steam, Glycol, Compressed air
Attention please: The description might be incorrect, please contact us for confirmation.
