Ship Bilge Water Separator

4 m³/h Ship Bilge Water Separator System | YSZ-4.0 Model | IMO MEPC.107(49) Certified | High-Capacity Oily Water Treatment Plant

Product Overview

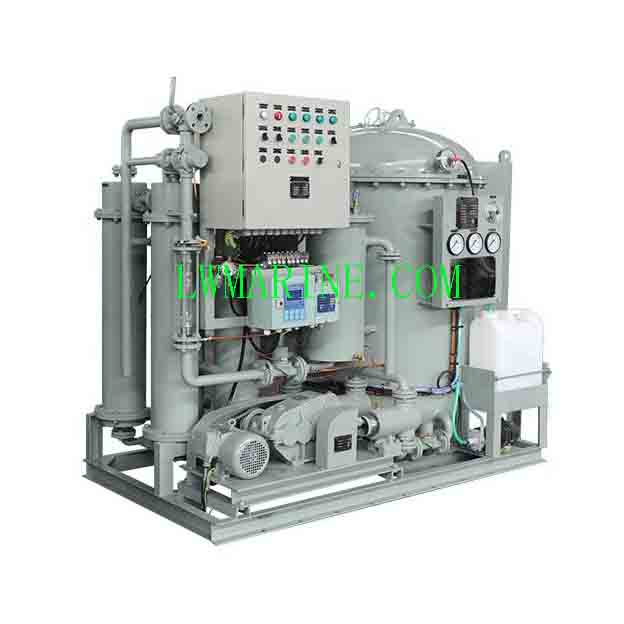

The YSZ-4.0 Ship Bilge Water Separator is a high-capacity, heavy-duty oily water treatment system engineered for large commercial vessels and offshore applications. Designed and manufactured in full compliance with IMO Resolution MEPC.107(49), this robust system processes 4 m³/h of bilge water while ensuring discharged effluent meets the stringent ≤15ppm international standard. Its industrial-grade construction and large-flow capabilities make it ideal for vessels with significant bilge water generation.

Key Features & Benefits

High-Volume Processing: 4 m³/h treatment capacity designed for large vessels and high-demand applications
IMO MEPC.107(49) Certified: Full compliance with international marine pollution prevention standards
Heavy-Duty Construction: Industrial-grade components built for continuous operation in demanding marine environments
Large Flow Interface System: Oversized connections (DN40/DN65) ensure efficient fluid handling and minimize pressure drop
Powerful Motor System: 1.5kW motor with 3kW heating capability for reliable performance in various conditions
Global Power Compatibility: Supports 3Phase/380V/50Hz and 3Phase/440V/60Hz electrical systems worldwide
Automatic Overboard Discharge: Allows compliant discharge when treatment standards are met
IACS Certification Ready: Available with all major classification society approvals

Technical Specifications

Parameter	Specification
Model	YSZ-4.0
Treatment Capacity	4 m³/h
Discharge Standard	≤15 ppm (IMO MEPC.107(49))
Working Pressure	≤0.3 MPa
Motor Power	1.5 kW
Electric Heating Power	3 kW
Power Supply	3Ph/380V/50Hz or 3Ph/440V/60Hz
