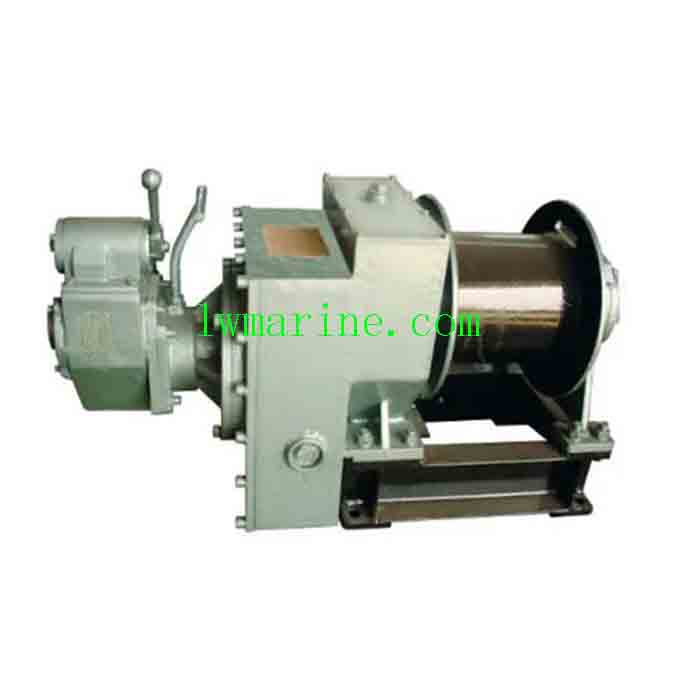

Ship Air Winch – JQH30×24 Explosion-Proof Deck Hoisting Solution
The JQH30×24 Ship Air Winch is a robust and safe lifting solution engineered for demanding maritime and industrial environments. Powered by compressed air and driven by a reliable TMH17 piston air motor, this winch delivers consistent performance through a secondary gear reducer system. With easy-to-operate manual controls, it enables precise hoisting, lowering, and stopping of wire ropes—making it ideal for a wide range of applications including marine operations, mining, construction sites, and offshore oil platforms.
Designed to perform reliably in hazardous and extreme conditions, this winch is both compact and portable, offering easy installation and minimal maintenance for long-term use.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | JQH30×24 |
| Compressed Air Pressure | 0.6–0.8 MPa |
| Normal Pull Force | 30 kN |
| Wire Rope Speed | 24 m/min |
| Wire Rope Diameter | 15.875 mm |
| Inlet Diameter | 32 mm |
| Air Motor | |
| Normal Power | 17 kW |
| Cylinder Number | 5 pcs |
| Cylinder Diameter | 130 mm |
| Air Consumption | 247 L/sec |
| Drum | |
| Number | 1 pc |
| Diameter | 222 mm |
| Width | 335 mm |
| Wheel Rim Diameter | 485 mm |
| Rope Capacity | 120 m |
| Configuration | |
| Length | 1280 mm |
| Width | 920 mm |
| Height | 989 mm |
| Weight | 498 kg |
The description/sizes may be different with goods, please check with us when order.
