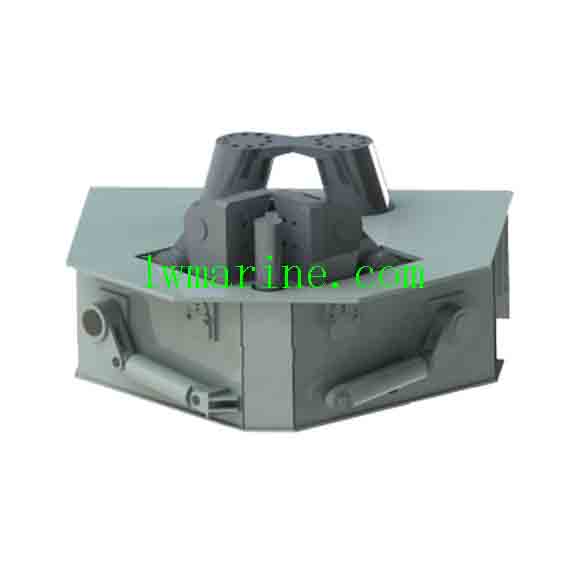

Hydraulic Anchor Handling Shark Jaws for Marine Applications
The hydraulic anchor handling shark jaws is an essential component within the anchor handling system, specifically designed to firmly secure chains or wires during the intricate process of shackling and unshackling anchors or buoys on the deck of an anchor handling vessel. This robust shark jaw is expertly welded into the deck of the vessel, ensuring a stable and reliable connection for various marine operations.
Key Features for Enhanced Marine Anchor Handling
- Seamless Integration with Hydraulic Pump Station: The shark jaw operates in perfect harmony with a hydraulic pump station, providing consistent and powerful performance for all anchor handling tasks.
- Remote-Operated Control: For added convenience and safety, the shark jaw can be remotely operated, allowing operators to manage the equipment from a secure distance.
- Versatile Jaw Options: It comes with different replaceable jaws, catering to a wide range of wire sizes, ensuring flexibility and adaptability in various marine environments.
- Retractable Deck Design: The shark jaw can be retracted into the deck, optimizing space utilization and protecting the equipment when not in use.
- Watertight Deck Integration: As a watertight deck device, it effectively prevents water leakage into the cabin, maintaining the vessel’s integrity and safety.
- Quick Release Mechanism: In emergency situations, the quick release system allows for rapid disconnection, enhancing operational safety and efficiency.
- Double Security Measures: The shark jaw incorporates double security features, providing an extra layer of protection during anchor handling operations.
- Independent Lifting and Locking: Each shark jaw can be raised and locked independently, allowing for precise control and customization according to specific operational needs.
Technical Specifications for Precision Marine Engineering
- Safe Working Load: Ranging from 80 to 750 tonnes, the shark jaw can handle a wide variety of anchor and buoy weights with ease.
- Max. Chain Size: It accommodates chains up to 7 inches (177mm) in diameter, ensuring compatibility with standard marine chains.
- Max. Wire Size: The shark jaw is also suitable for steel wire ropes up to 7 inches (178mm) in diameter, providing versatility in anchor handling.
- Power Options: Available in both electric and hydraulic-driven models, the shark jaw can be integrated into various vessel power systems.
- Replaceable Jaw Inserts: For added convenience, the shark jaw features replaceable jaw inserts, allowing for easy adaptation to different chain sizes.
- Application Scope: Ideal for tugboats, anchor handling and supply vessels, and other types of ships, the shark jaw enhances the efficiency and safety of marine anchor handling operations.
Basic Parameters for Your Reference
| Shark Jaw Model | Towing Pin Model | Bollard Pull (ton) | Holding Capacity (ton) | Power Required (kw) |
|---|---|---|---|---|
| SJ-100 | TP-100 | 40 | 100 | 15 |
| SJ-200 | TP-200 | 60 | 200 | 22 |
| SJ-300 | TP-300 | 85 | 300 | 22 |
| SJ-400 | TP-400 | 120 | 400 | 30 |
| SJ-500 | TP-500 | 150 | 500 | 30 |
| SJ-700 | TP-700 | 200 | 700 | 37 |
Frequently Asked Questions (FAQs)
Q1: What is the primary function of a hydraulic anchor handling shark jaw on a vessel?
A1: The primary function of a hydraulic anchor handling shark jaw is to secure chains or wires during the shackling and unshackling of anchors or buoys on the deck of an anchor handling vessel, ensuring safe and efficient operations.
Q2: Can the shark jaw be operated remotely?
A2: Yes, the shark jaw is designed to be remotely operated, providing operators with the convenience and safety of managing the equipment from a secure distance.
Q3: Are the jaws of the shark jaw replaceable for different wire sizes?
A3: Absolutely, the shark jaw comes with different replaceable jaws, allowing it to accommodate a wide range of wire sizes for versatile marine applications.
Q4: How does the quick release system of the shark jaw enhance operational safety?
A4: The quick release system enables rapid disconnection in emergency situations, allowing operators to quickly respond to potential hazards and ensuring the safety of the vessel and its crew.
Q5: Is the shark jaw suitable for use on tugboats and other types of ships?
A5: Yes, the shark jaw is ideal for tugboats, anchor handling and supply vessels, and other types of ships, enhancing the efficiency and safety of marine anchor handling operations across various vessel types.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
