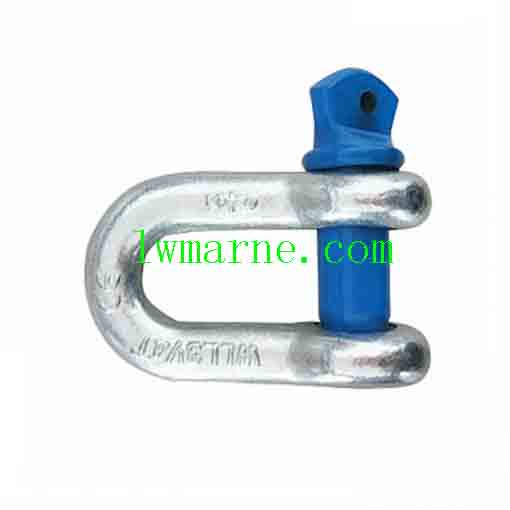

Screw Pin Chain Shackle Hammerlok Shackle US Type G210
Elevate your rigging systems with our top-tier Screw Pin Chain Shackle, specifically designed as US Type G210. As a seasoned supplier with years of expertise in high-quality rigging equipment, we have established strong partnerships with other reputable factories, enabling us to offer this essential product at highly competitive prices. We are eager to forge lasting business relationships with clients seeking reliable and cost-effective rigging solutions.
Product Details:
- Model: Screw Pin Chain Shackle US Type G210 (High-Quality Rigging Shackle, Marine Hardware Shackle)
- Material Options: Stainless Steel (Corrosion-Resistant Shackle), Carbon Steel (Durable Rigging Component), Alloy Steel (Enhanced Strength Shackle)
- Applications: Marine Hardware, Electric Power Industry, Heavy Machinery, Metallurgical Processes
- Surface Treatments: Electric Galvanized (Anti-Corrosion Finish), Hot Dipped Galvanized (Long-Lasting Protection), Self-Colored (Natural Finish Option)
- Size Range: From 1/4 inch to 2-1/2 inch (Versatile Size Selection for Various Rigging Needs)
- Packaging Options: Gunny Bag, Carton with Pallet, or Customized Packaging as per Customer Requirements
- Our Strengths: Quality Assurance, Experienced Technical Staff, Professional Customer Service, Competitive Pricing Strategy
- Certifications: ISO9001 Quality Management, CE Safety Compliance, SGS Verification
- Customization: Special Specifications and Custom Marks Available Upon Request
Technical Specifications:
| Size (in) | WLL (tons) | Pin Dia (in) | IL (in) | Weight Each (lbs) |
|---|---|---|---|---|
| 1/4 | 1/2 | 5/16 | 7/8 | 0.11 |
| 5/16 | 3/4 | 3/8 | 1-1/32 | 0.17 |
| 3/8 | 1 | 7/16 | 1-1/4 | 0.24 |
| 7/16 | 1-1/2 | 1/2 | 1-7/16 | 0.40 |
| 1/2 | 2 | 5/8 | 1-5/8 | 0.59 |
| 5/8 | 3-1/4 | 3/4 | 2 | 1.21 |
| 3/4 | 4-3/4 | 7/8 | 2-3/8 | 2.25 |
| 7/8 | 6-1/2 | 1 | 2-13/16 | 3.16 |
| 1 | 8-1/2 | 1-1/8 | 3-3/16 | 4.47 |
| 1-1/8 | 9-1/2 | 1-1/4 | 3-9/16 | 6.75 |
| 1-1/4 | 12 | 1-3/8 | 3-15/16 | 9.06 |
| 1-3/8 | 13-1/2 | 1-1/2 | 4-3/8 | 11.60 |
| 1-1/2 | 17 | 1-3/4 | 4-13/16 | 15.95 |
| 1-3/4 | 25 | 2 | 5-3/4 | 26.75 |
| 2 | 35 | 2-1/4 | 6-3/4 | 42.31 |
| 2-1/2 | 55 | 2-3/4 | 8 | 71.75 |
FAQs:
- Q: What is the maximum load capacity (WLL) of the largest size shackle available?
- A: The largest size shackle, 2-1/2 inch, has a maximum load capacity (WLL) of 55 tons, making it suitable for heavy-duty rigging applications.
- Q: Can these shackles be used in saltwater environments without corrosion?
- A: Yes, our shackles are available with electric galvanized or hot dipped galvanized finishes, which provide excellent corrosion resistance, making them ideal for marine and saltwater applications.
- Q: Do you offer custom marking or branding on the shackles?
- A: Absolutely, we can accommodate special specifications and custom marks on the shackles as per your requirements, ensuring brand visibility and traceability.
- Q: What is the difference between stainless steel and carbon steel shackles in terms of performance?
- A: Stainless steel shackles offer superior corrosion resistance, making them suitable for harsh environments, while carbon steel shackles provide excellent strength and durability at a more cost-effective price point.
- Q: How do I determine the correct size shackle for my rigging application?
- A: The correct size shackle depends on the load capacity (WLL) required and the dimensions of the rigging components it will be connecting. Refer to our technical specifications table or consult with our technical team for assistance in selecting the appropriate size.
Please Note: The description might be incorrect, please contact us for confirmation.
