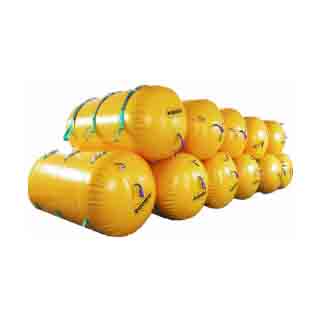

Salvage Buoyancy Float
Salvage buoyancy float is mainly used for ship salvage, wreck salvage, and shallow sea buoyancy assistance. They can also be used for laying marine cables and pipelines. With convenient transportation and simple operation, they greatly save manpower.
Our salvage buoyancy floats are strictly produced in accordance with IMCA D016 standards, with products reaching a safety factor of 5 times. They are equipped with safety valves that automatically open when the pressure reaches the rated pressure. We can also provide third-party certifications such as BV, CCS, ABS, and LR according to customer requirements.
| Type | Model | Lift Capacity (Kgs) | Lift Capacity (LBS) | Dimension (m) Dia | Pick Up Length | Inlet Valves | Appr. Packed Size (m) Length | Appr. Packed Size (m) Width | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|---|
| Commercial Lifting Bags | TP-50L | 50 | 110 | 0.3 | 0.6 | 2 | 1 | 0.60 | 0.30 |
| TP-100L | 100 | 220 | 0.4 | 0.9 | 2 | 1 | 0.65 | 0.30 | |
| TP-250L | 250 | 550 | 0.6 | 1.1 | 2 | 1 | 0.70 | 0.35 | |
| TP-500L | 500 | 1100 | 0.8 | 1.5 | 2 | 1 | 0.80 | 0.30 | |
| TP-1 | 1000 | 2200 | 1.0 | 1.8 | 2 | 2 | 0.60 | 0.35 | |
| TP-2 | 2000 | 4400 | 1.3 | 2.0 | 2 | 2 | 0.70 | 0.40 | |
| TP-3 | 3000 | 6600 | 1.4 | 2.4 | 3 | 2 | 0.70 | 0.45 | |
| TP-5 | 5000 | 11000 | 1.5 | 3.5 | 4 | 2 | 0.80 | 0.50 | |
| Professional Lifting Bags | TP-6 | 6000 | 13200 | 1.5 | 3.7 | 4 | 2 | 0.80 | 0.50 |
| TP-8 | 8000 | 17600 | 1.8 | 3.8 | 5 | 2 | 1.00 | 0.60 | |
| TP-10 | 10000 | 22000 | 2.0 | 4.0 | 5 | 2 | 1.10 | 0.60 | |
| TP-15 | 15000 | 33000 | 2.2 | 4.6 | 6 | 2 | 1.20 | 0.70 | |
| TP-20 | 20000 | 44000 | 2.4 | 5.6 | 7 | 2 | 1.30 | 0.80 | |
| TP-25 | 25000 | 55125 | 2.4 | 6.3 | 8 | 2 | 1.35 | 0.70 | |
| TP-30 | 30000 | 66000 | 2.7 | 6.0 | 6 | 2 | 1.20 | 0.90 | |
| TP-35 | 35000 | 77000 | 2.9 | 6.7 | 7 | 2 | 1.20 | 0.90 | |
| TP-50 | 50000 | 110000 | 2.9 | 8.5 | 9 | 2 | 1.60 | 1.20 |
Attention please: The description might be incorrect, please contact us for confirmation.
