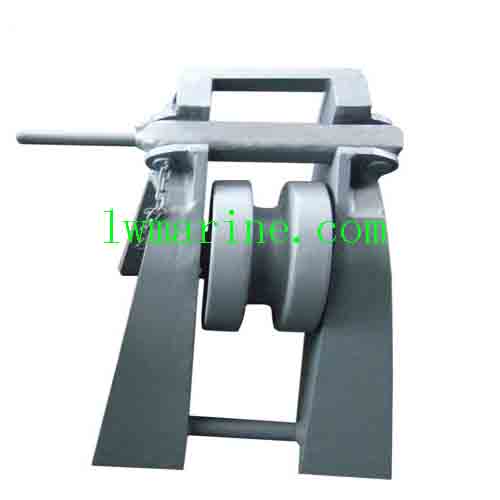

Roller Bar Type Chain Stopper

Certificate: CCS, GL, BV certificate, etc.
Delivery Time: 15 days
Place of Origin: China
Packing Details: Export standard packaging.

Category:

China JIS F2033 Roller Bar Type Chain Stopper | Heavy-Duty Marine Grade Chain Lock

Engineered to meet rigorous JIS F2033 standards, our Roller Bar Type Chain Stopper provides secure holding for Grade 3 anchor chain cables in demanding marine applications. Manufactured through precision casting and polishing processes, this robust chain lock device withstands up to 80% of the chain cable’s breaking load, offering reliable performance for vessel mooring and anchoring systems. We provide complete certification packages including CCS, BV, ABS, DNV, and mill certificates, with custom engineering solutions available to meet specific project requirements.

Product Highlights & Key Features:

  • JIS F2033 Certified: Compliant with Japanese industrial standards for marine chain stoppers

  • Grade 3 Chain Compatibility: Specifically designed for use with high-strength grade 3 anchor chains

  • Heavy-Duty Construction: Precision casting and polishing for superior durability and performance

  • High Load Capacity: Engineered to withstand 80% of chain cable’s breaking load

  • Multiple Material Options: Available in high-strength cast iron and cast steel constructions

  • Full Certification Package: Supplied with CCS, BV, ABS, DNV certifications and mill certificates

  • Custom Engineering Solutions: All products can be customized to meet specific customer requirements

Technical Specifications:

Nominal Chain Diameter (mm) Dimension A (mm) Dimension B (mm) Dimension C (mm) Dimension D (mm) Weight (kg)
70-73 730 715 700 730 1000
76-78 780 760 730 780 1180
81-84 840 820 780 840 1470
87-90 900 890 840 900 1780
92-95 980 945 880 950 2110
97-100-102 1020 1005 940 1020 2380
105-107 1070 1070 990 1070 2900
111-114 1140 1140 1040 1140 3440
117-122 1220 1220 1100 1220 4100
127-132 1320 1315 1170 1320 5080

Applications & Industries:

  • Commercial Vessel Anchoring Systems

  • Offshore Platform Mooring Operations

  • Shipbuilding and Marine Engineering

  • Harbor and Port Infrastructure

  • Naval and Military Vessels

The description/sizes may be different with goods, please check with us when order.
