Repeater Compass

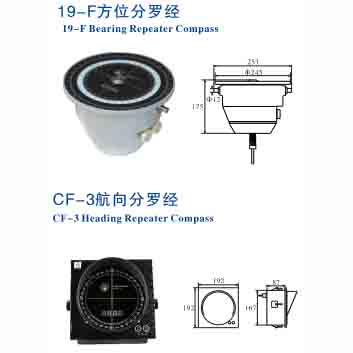

19-F Bearing Repeater Compass
(Diagram layout provided in the source image)
CF-3 Heading Repeater Compass
(Diagram layout provided in the source image)
Standard Specifications
| Power supply | DC24V |
|---|---|
| Navigation serial port | Rs422 or 232 (NMEA) |
| Rs422 interface | 4800 baud |
| Cycle time | 120ms |
| Installation | CF-3: 3 types installation |
| Heading input | −−HDT,x.x,T∗CC<CR><LF>,–HDM,x.x,MCC<CR><LF>, $–HDG,x.x,x.x,x.xCC<CR><LF>, Sentences information accords with NMEA-0183 standard 2.0 edition |
| Mechanical division | CF-3: Distinguishability 0.023° |
| Reading precision | CF-3: 0.5° |
Note: The description may be different with the product, please contact us for quotation.
